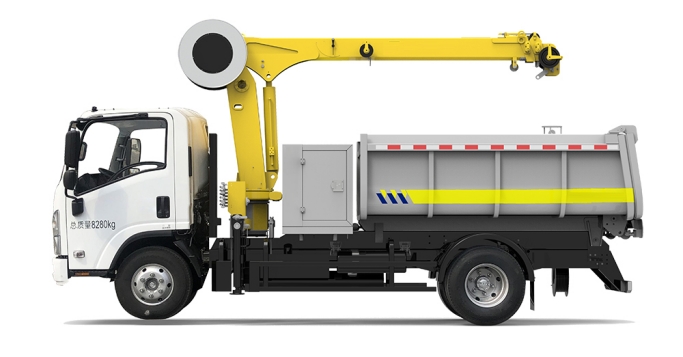

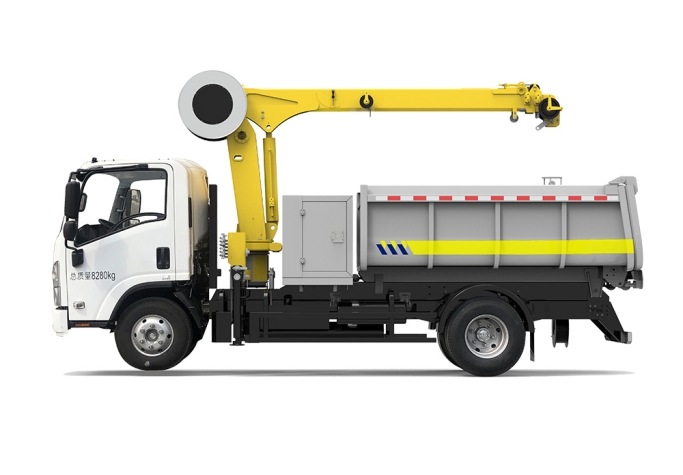

Excavation-type Pipeline Cleaning Vehicle

I. Product Introduction

The excavation-type pipeline cleaning vehicle is a compact and small-to-medium-sized grab dredger, mainly suitable for the sediment removal in various manholes, sedimentation wells, and septic tanks in urban municipal drainage systems, industrial and mining enterprises, and residential areas. Its core function is to quickly remove various sediments accumulated in manholes, effectively reducing the labor intensity of municipal maintenance work, significantly improving the efficiency of workers' operations, and ensuring their safety.

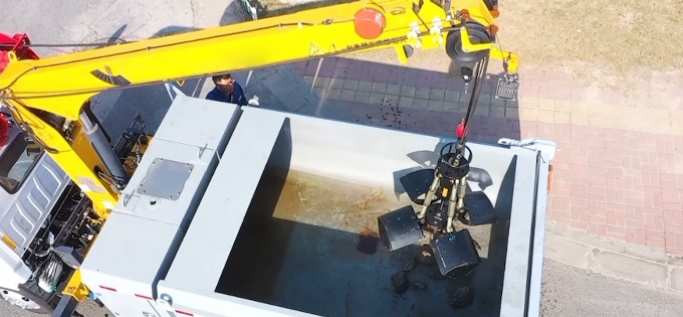

In terms of core configuration, this vehicle is professionally manufactured with outstanding features. It is equipped with the only on-board crane in the industry that has a 360-degree full rotation function, featuring a three-stage telescopic boom with a length of nearly 8 meters, providing a wide coverage area for operations. At the end of the boom, there is a fully enclosed circular four-piece structure sludge self-unloading grab, with an effective working depth of 17 meters, meeting the requirements of deep well operations; the top of the grab is equipped with a ring-shaped handle, facilitating manual assistance in aligning the well opening.

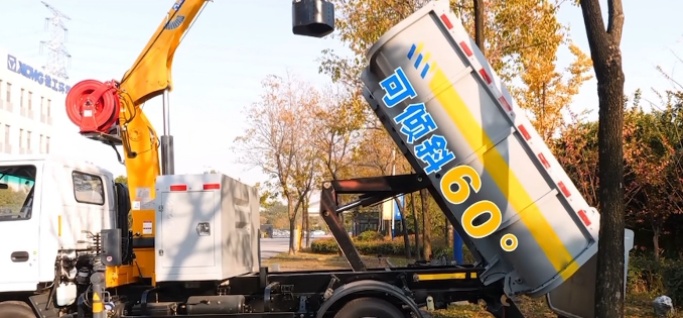

It performs excellently in terms of environmental protection and reliability. The sludge tank is made of high-strength weather-resistant steel, featuring light weight, high strength, and corrosion resistance; the entire vehicle is equipped with a scissor-lift mechanism, ensuring strong self-unloading stability and the ability to tilt 60 degrees for cleaner unloading; the rear door of the tank is designed with a locking and sealing structure, fully ensuring the cleanliness and safety during transportation and reducing secondary pollution. Compared with traditional suction pump cleaning that requires a large amount of sewage suction, this vehicle has very little water content in the sludge it grabs, significantly improving transportation efficiency and reducing usage costs.

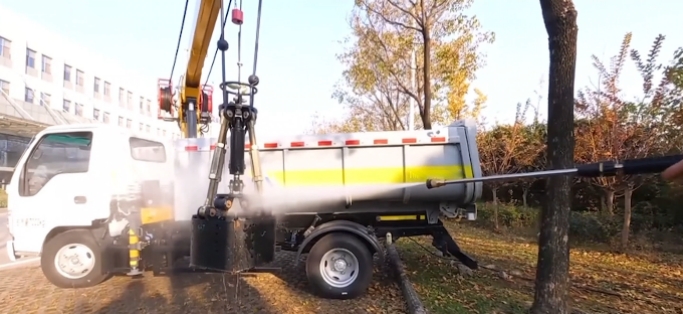

At the same time, the vehicle also has a high-pressure cleaning function, equipped with a 400-liter large-capacity clean water tank and a high-pressure water gun, capable of continuous cleaning for about one hour, and can clean both the vehicle itself and the road surface, ensuring no residue at the work site.

In terms of safety and intelligence, the hydraulic outriggers on both sides of the vehicle can be controlled, facilitating leveling to improve operational stability; the boom is equipped with anti-overwind and anti-overrelease functions, with strong fault tolerance and comprehensive protection. Additionally, it can be optionally equipped with boom centering prompts and proportional operation functions, achieving smooth and small-shake operation, further enhancing work efficiency. The standard wireless remote control can remotely operate the boom lifting, rotation, and grab opening and closing, enabling precise positioning for sediment removal and easily grabbing sludge, stones, bricks, and other debris in manholes without the need for manual well entry. The vehicle is also equipped with short-circuit protection, emergency stop switches, detection protection, and other safety features, and is set with a follow-up lighting system to ensure safety during night operations. This cleaning vehicle can not only handle various moderate and light sediment accumulation but also flexibly navigate through narrow areas, completing the sediment removal work smoothly, providing protection for sanitation workers and ensuring the smooth flow of urban underground pipelines.

II. Product Advantages

1. Efficient Scene Adaptation: As a compact and small-to-medium-sized grab dredger, it can precisely meet the sediment removal needs of various manholes and septic tanks in urban municipal, industrial and mining enterprises, and residential areas, quickly removing sediments, significantly reducing labor intensity and improving work efficiency.

2. Stable Boom System: Equipped with a reliable XCMG crane, featuring an integrated design, light weight, and strong load-bearing capacity; it has a 360-degree full rotation function, doubling the coverage area for fixed-point operations, and can pass through circular holes with a diameter of over 460mm; the boom rotation is controlled proportionally, ensuring smooth operation and minimal grab swing, effectively reducing the time for aligning the well opening.

3. Flexible Grab Configuration: Equipped with a circular four-piece grab, with a closed diameter of 450mm and an open diameter of 980mm, it has strong adaptability to well openings and manholes; the grab volume is 42L, with an effective working depth of 17 meters; it is also equipped with a follow-up lighting system to enhance the convenience of night operations.

4. Powerful Cleaning and Hydraulic System: The optimized high-pressure cleaning system is matched with a 400L large-capacity clean water tank, capable of continuous cleaning for about one hour; the hydraulic system uses high-quality components, with fast response, stability, and reliability, ensuring efficient operation. 5. Safe and convenient design: The rear door of the carriage adopts a tightly sealed lock structure to ensure clean and safe transportation; an optional wireless remote control can be used to remotely operate the lifting, rotation, extension and retraction of the boom, as well as the opening and closing of the grab; the sludge box uses a scissor-type lifting mechanism that can be tilted up to 60°, providing higher stability when dumping sludge; it is equipped with a complete lighting system and multiple protection systems to ensure smooth operation at night.

III. Applicable Working Conditions

1. Urban municipal drainage field: It is suitable for cleaning and maintaining sludge and debris in various diameter drainage wells and sedimentation wells under municipal roads, ensuring the smooth operation of urban drainage networks.

2. Industrial and mining enterprise scenarios: It can be used to clean sludge and debris in industrial wastewater sedimentation tanks and sewage wells in factory areas, meeting the daily maintenance needs of industrial sewage systems.

3. Residential community environment: It is suitable for regular cleaning of sediment in septic tanks and domestic sewage sedimentation tanks in residential communities, improving the living environment of the community.

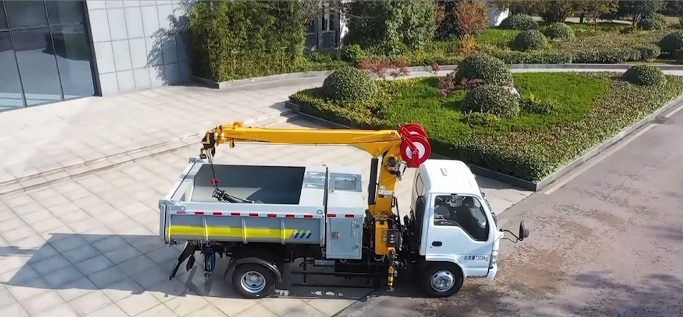

4. Narrow area operations: With its compact body design, it can flexibly pass through narrow roads in urban villages and old urban areas to complete small well sludge cleaning operations.

5. Deep well sludge cleaning requirements: Due to the effective working depth of the grab reaching 17 meters, it is suitable for cleaning sludge in deep municipal or industrial wells.

6. Night emergency operations: Equipped with a follow-up lighting system for operations and a complete safety protection system, it can meet the emergency sludge cleaning needs for sudden drainage failures at night.
