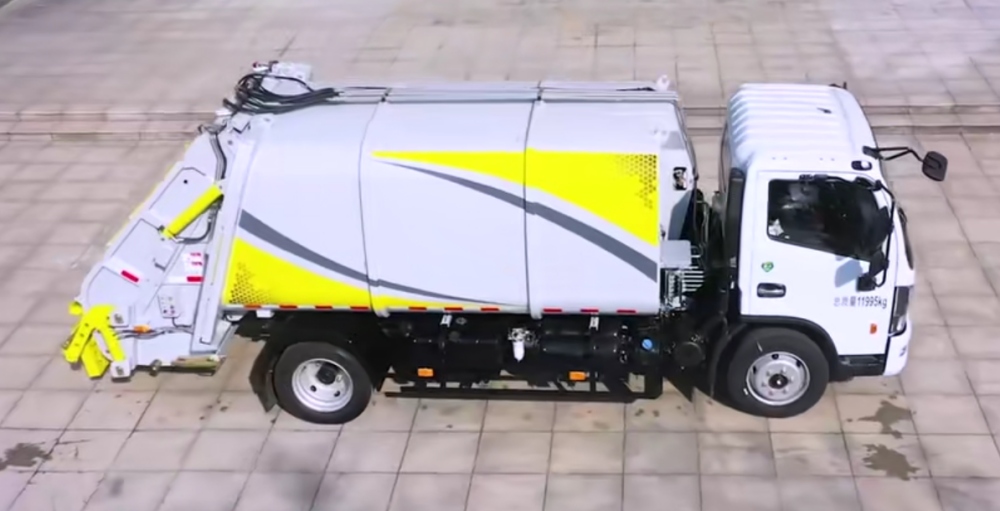

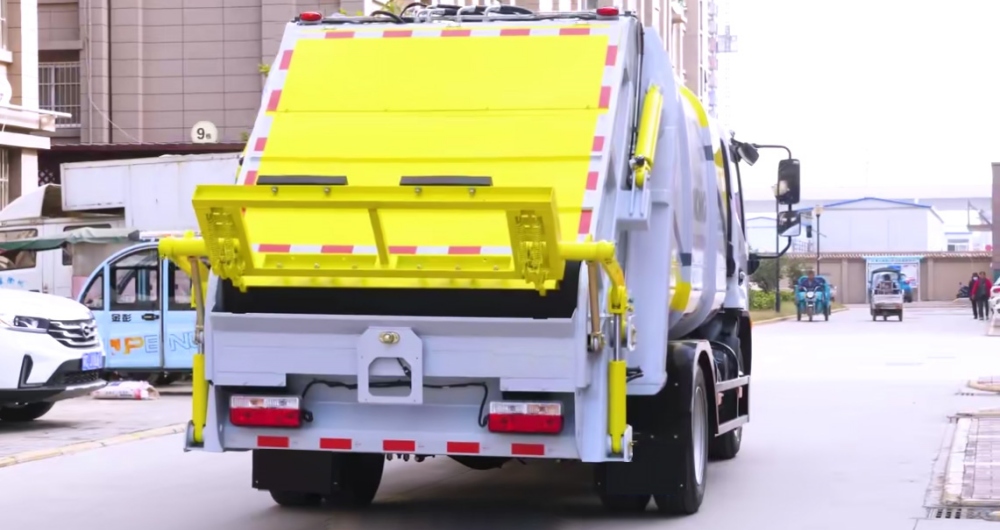

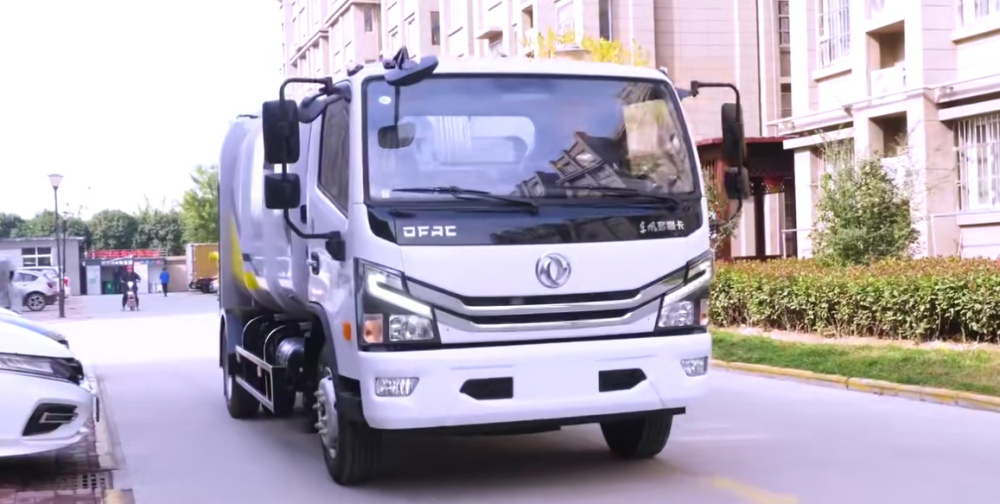

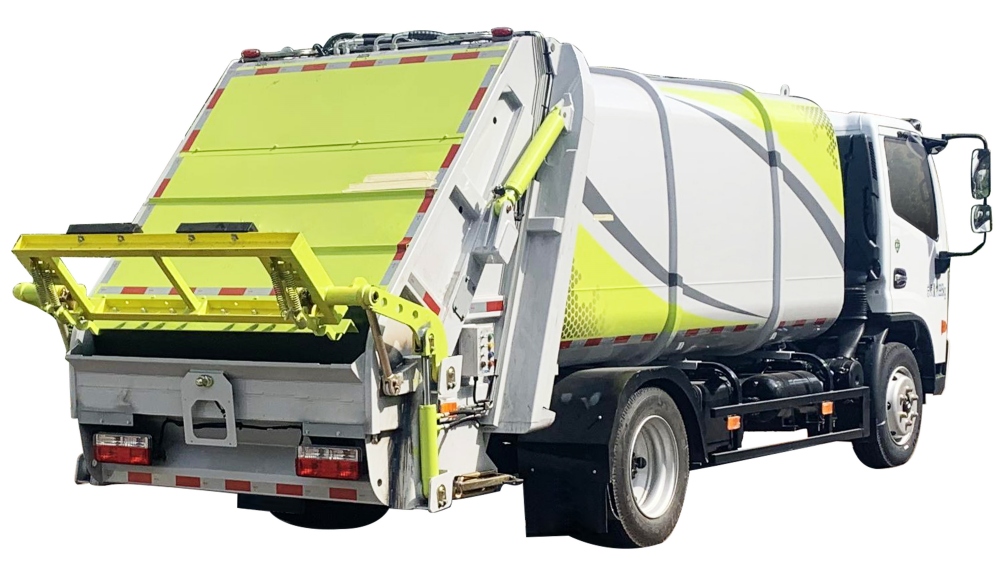

Rear-loading Compressed Garbage Truck

I. Product Introduction

As a new-generation urban garbage collection tool, the rear-loading compressed garbage truck redefines the urban cleaning standard with its robust environmental protection technology and efficient operation capabilities. The truck features a fully sealed design, ensuring a closed loop from garbage loading to transportation. Its self-compression and dumping functions, combined with an independent sewage tank, effectively prevent the leakage of leachate from the source, completely solving the problem of secondary pollution caused by traditional garbage trucks.

In terms of environmental performance, the vehicle is equipped with a Dongfeng chassis that meets the National VI emission standards, achieving low emissions and low energy consumption for green operation. Every operation contributes to improving the air quality of the city. The innovative integrated design of the hopper and sewage tank further enhances sealing protection, and the high-quality, low-noise multi-way valve ensures a quiet operation process, allowing garbage collection to coexist harmoniously with residents' lives.

Efficient operation capabilities are also a core advantage. The newly upgraded bidirectional compression technology reduces the cycle time to ≤14 seconds, increasing the garbage loading capacity by 26% compared to traditional models. This significantly reduces the number of round trips for transportation and greatly improves the efficiency of each operation. To adapt to various collection scenarios, the vehicle is equipped with multiple loading mechanisms of different specifications, perfectly matching various types of trash bins. A ground clearance of 260mm ensures smooth passage in complex road conditions.

The intelligent control system further enhances the efficiency of operations: the CN bus and dedicated controller ensure precise control, the tail control box allows real-time observation of the loading progress, and the remote unloading function from the driver's cab ensures operational safety, making every operation efficient and orderly. This product is widely used in densely populated areas such as streets, residential communities, schools, and hospitals, safeguarding urban cleanliness with its dual advantages of environmental protection and efficiency.

II. Product Advantages

1. Upgraded Appearance Design: The vehicle adopts a brand-new appearance design, with a grand and beautiful shape.

2. Efficient Compression Technology: The bidirectional compression technology increases the compression ratio, providing a larger cargo capacity. The loading capacity is 20% higher than that of similar domestic products.

3. Stable Unloading Guarantee: The symmetrical arrangement of the push plate slide rails ensures strong rigidity and good stability, with smooth movement and thorough unloading without residue, ensuring reliable operation.

4. Efficient Utilization of Power: The dual-pump flow diversion technology maximizes the utilization of the power system flow, significantly improving operation efficiency.

5. Residue-free Cleaning Design: When the loading device is lifted, the secondary cleaning design of the scraper ensures thorough unloading without residue, reducing the need for secondary operations.

6. Intelligent and Efficient Operation: Supports multiple loading cycles, equipped with clear action and status indicators, and is easy and smooth to operate.

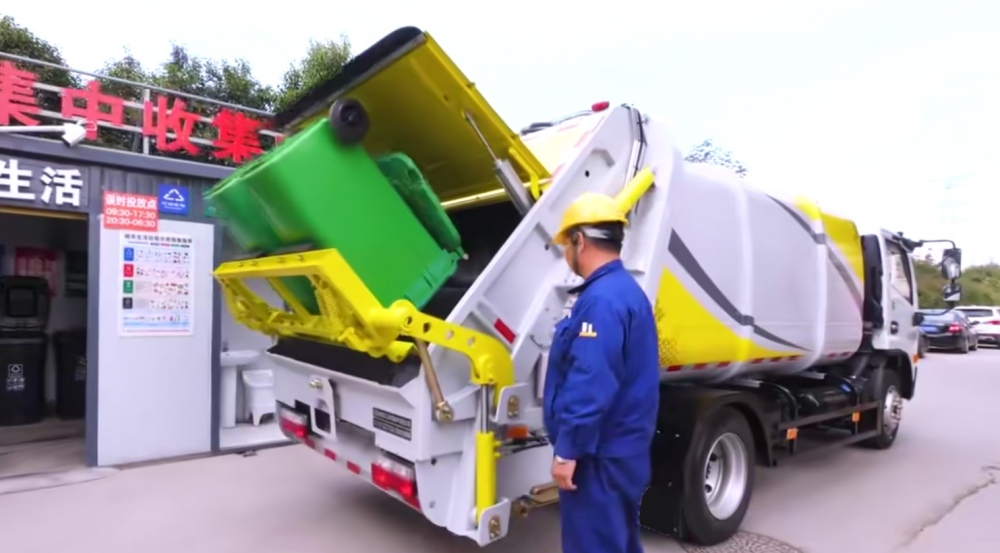

7. Adaptation to Diverse Scenarios: The modular design enables seamless switching between various collection devices, and multiple collection methods such as bucket and shovel are suitable for different scenarios.

III. Applicable Conditions

Densely populated areas such as streets, residential communities, schools, and hospitals.
