NJJ5180TPS6 High-flow Drainage Emergency Vehicle(Total drainage capacity: 5000m³/h)

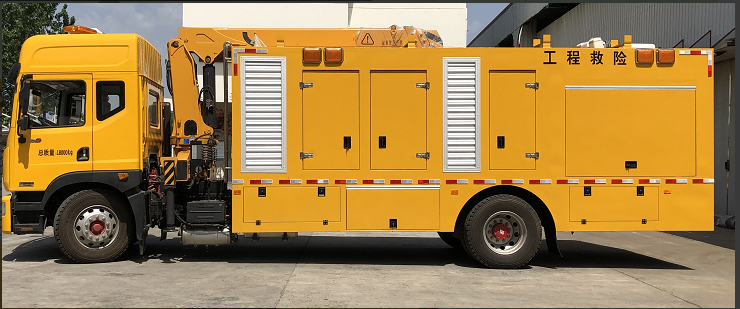

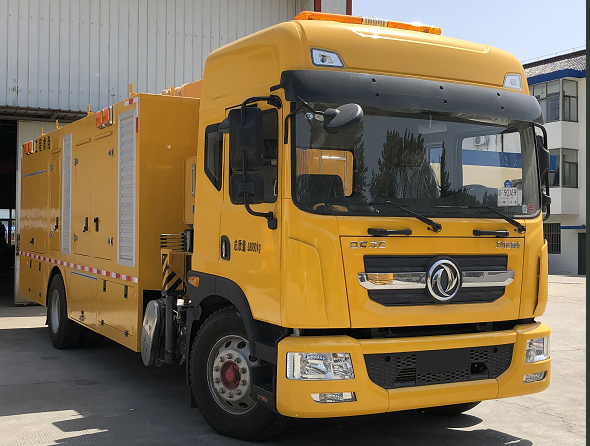

Vehicle appearance：

With the accelerated pace of civilized city construction, the city of all levels of emergency preparedness has been more and more perfect.

Emergency drainage and rescue and conventional maintenance operations have many special characteristics, such as: the suddenness of the incident, the urgency of the rescue, the complexity of the work surface, the safety of the operation, the randomness of the construction environment, the environmental protection of the workplace, the arbitrariness of the time, the continuous work time is long ......, which puts forward the corresponding equipment is also higher, more professional requirements. This puts forward higher and more professional requirements for the corresponding equipment.

In response to market and customer demand, our company has developed NJJ5180TPS6 large flow emergency drainage vehicle. The vehicle is equipped with high-quality Dongfeng National VI chassis, and the environmentally friendly low-noise sound insulation compartment is assembled on the chassis. The vehicle is equipped with high-power diesel-powered generator set, high-flow self-priming pump and high-lift sewage pump to adapt to flooding conditions; the top of the vehicle is equipped with remote-controlled lifting lamps, the body is equipped with warning lamps; equipped with sewage pipeline, pipe joints, etc. The vehicle is highly maneuverable and can truly achieve the goal of flooding.

Vehicle mobility is strong, truly realize the concept of mobile pumps, equipment to meet the needs of emergency drainage rescue; equipped with hydraulic outrigger system, to ensure the stability of the vehicle during construction operations; equipment can work normally and reliably, with good ventilation and heat dissipation; the wading depth of the vehicle is 500mm, to meet the deep-water areas of the rescue and relief work; with a power supply output to meet the 230/400V power needs; lighting to meet the night operation The lighting can meet the needs and safety of night operation.

This equipment is flexible in movement, fast in unfolding and withdrawing, with fewer operating personnel, strong adaptability, low labor intensity, fast in emergency response, which improves the comprehensive guarantee performance of urban disaster relief and emergency response.

The specific application fields of this equipment include:

1. the field of urban firefighting;

2. the field of rapid supply of living water in case of sudden disaster, wartime, water pollution and major epidemics;

3. flood control, drought, mine rescue, forest fire fighting, highway bridge bottom culvert drainage, irrigation and other fields.

Design basis

The modified design principles refer to the national standards and industry standards on modified vehicles, flooding and other related national standards and installation instructions for vehicle-mounted equipment, and at the same time, combined with Dongfeng's body structure, load-bearing parameters design, to meet the customer's needs for flooding on the basis of a reasonable layout, easy to operate; the appearance, the interior to achieve a beautiful and generous.

The relevant standards are as follows.

GB 1589 Outline dimensions, axle load and mass limits for road vehicles.

GB 7258 Motor Vehicle Operation Safety Technical Conditions

GB 8108 Performance Requirements and Test Methods for Vehicle Electronic Alarms

GB 9969.1 Industrial product instruction manuals

GB/T 13954 special vehicle marking lamps and lanterns

GB3848 Measurement method of free acceleration smoke of diesel vehicles

GB/T12534 General Principles of Road Test Methods for Automobiles

GB/T12538 Measurement method of center of gravity height of automobile

GB/T12539 Test Method for Vehicle Climbing Steep Grades

GB 4785 Provisions for the Installation of External Lighting and Light Signal Devices for Vehicles and Trailers

QC/T 252 Test Specification for Special Purpose Vehicle Sizing

QC/T 484 Automobile Paint Coating

GB/T 4712 Classification Requirements for Automated Diesel Generator Sets
