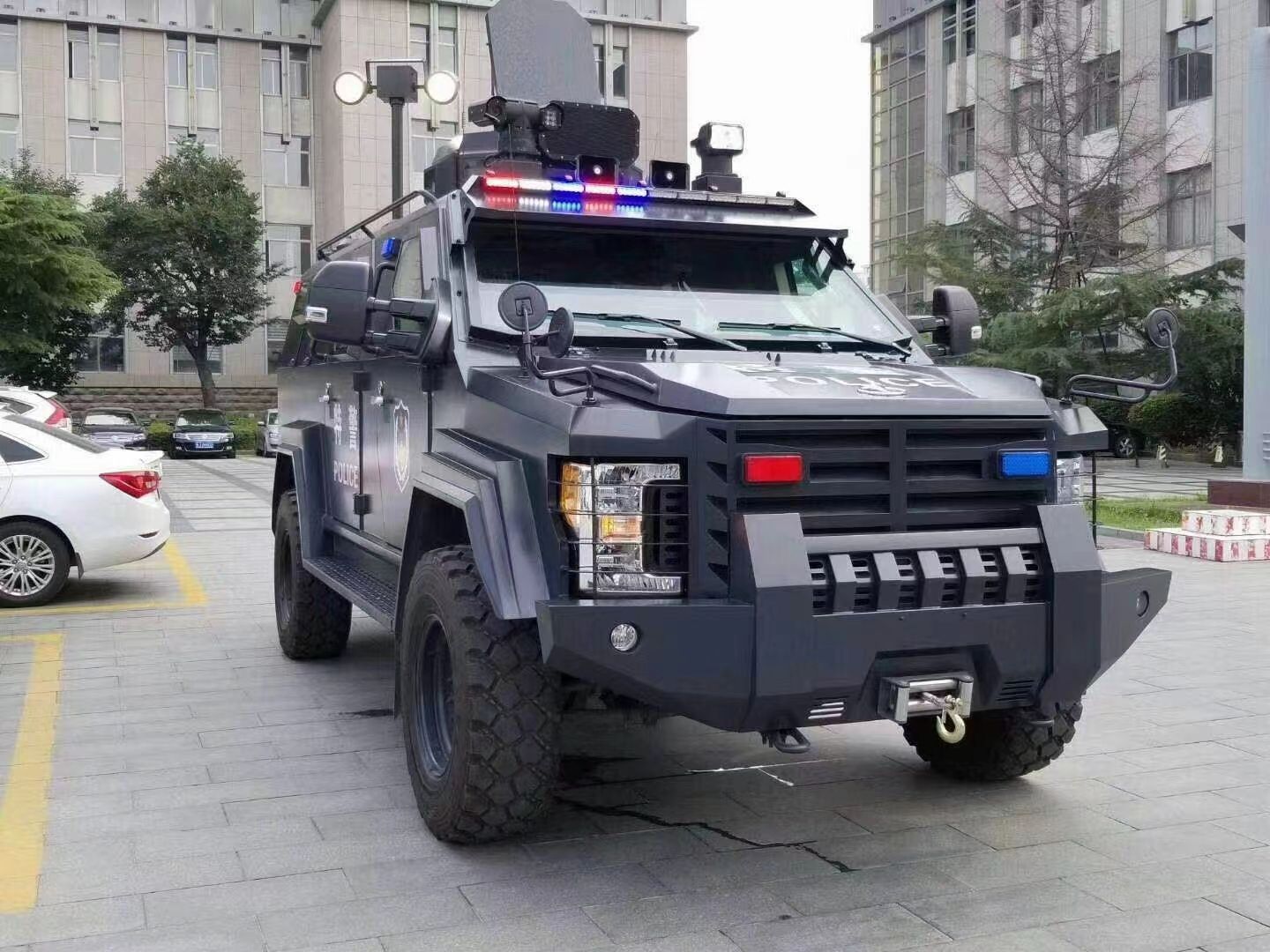

Main Function Description
1. Bulletproof Armor: The crew area, fuel tank, water tank, and engine compartment are C-class bulletproof. Both sides of the body and the tailgate are equipped with bulletproof shooting ports. Bulletproof off-road wheel assemblies and a tire-mounted wheel bulletproof travel device ensure continued operation even after a tire burst.
2. Warning Device: Features include color-changing strobe lights, square alarm lights, alarms, and powerful speakers.
3. Safe Troop Transport: With ample internal space, the vehicle comfortably accommodates up to 12 personnel.
4. Air Exchange System: Comprised of a cooling fan, overhead air conditioning evaporator, and sound-insulating foam integrated into the vehicle skeleton.
5. Engine Room Fire Protection: The engine room is equipped with an automatic fire extinguishing system to enhance engine fire safety.
6. Additional Features: Includes searchlights, a reverse rearview assembly, a surveillance camera system, and an electric winch. Awaiting future advancements.

Product Technical Parameters
Chassis Model
American Ford F-550 7.3L
Engine Model
DEVCT (V8, Gasoline)
Max Total Mass (kg)
8165
Displacement (L)
7.3
Maximum Power (kW/rpm)
255/3900
Maximum Torque (N.m/rpm)
624/3900
Maximum Speed (km/h)
≥130
Drive Form
4x4
Overall Dimensions (mm)
6680×2410×2955
Wheelbase (mm)
3675
Number of Seats (Including Pilot and Co-pilot)
2+2+6
Front/Rear Wheel Base (mm)
2045/2045
Minimum Ground Clearance (mm)
320
Approach Angle/Departure Angle (°)
22°/18°
Front Overhang (mm)
1290
Rear Suspension (mm)
1610 (with spare tire)
Climb Grade (%)
≥50
Roll Stability Angle (°)
≥32
