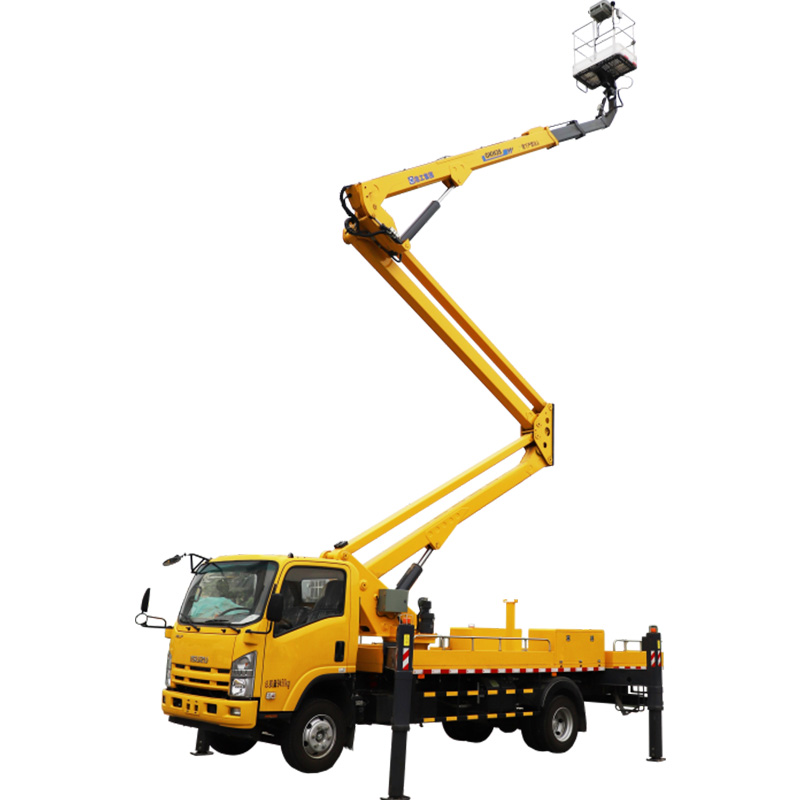

GKH23C Mixed Boom Aerial Worker
Description
The vehicle adopts the hybrid structure of two-section folding arm + three-section telescopic arm, which has a compact structure and can be operated in full range without limitation. The structural parts are made of high quality steel with high strength and small deformation to ensure safety and reliability. Advanced CAN bus technology, synchronous telescopic boom lifting and lowering, lightweight technology and chassis engine control technology, the product performance is safe and reliable.
Parameters
| Item | Unit | GKH23C |
| Maximum working height | m | 22.9 |
| Maximum working range | m | 11.3 |
| Rated load | kg | 200 |
| Slewing angle | ° | ±360 |
| Swivelling angle of working bucket | ° | ±122 |
| Operating range at maximum working height | m | 22.9 |
| Operating height at maximum working height | m | 11.3 |
| Travelling dimension | L*W*H | 5995×2090×2850 |
| Chassis Model | / | JX1041TCD26 |
| Engine Model | / | JX4D30B6H |
| Engine power | kw | 85 |
| Number of passengers permitted in the cab | person | 2 |
