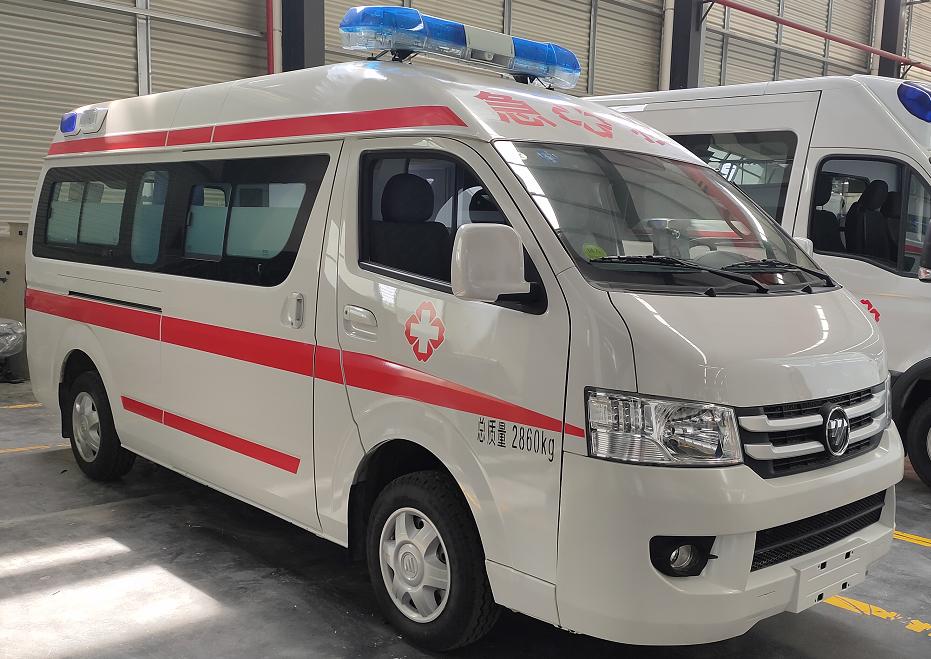

Futian G7 Long-Axis Ambulance for Patient Care

Futian  G7 Long-Axis Ambulance for Patient Care

Parameter

Maximum gross mass: 2860kg

Passenger capacity: 7 (including stretcher passengers)

Wheelbase: 3050mm

Vehicle dimensions: Length × Width × Height 5320mm × 1695mm × 2410mm

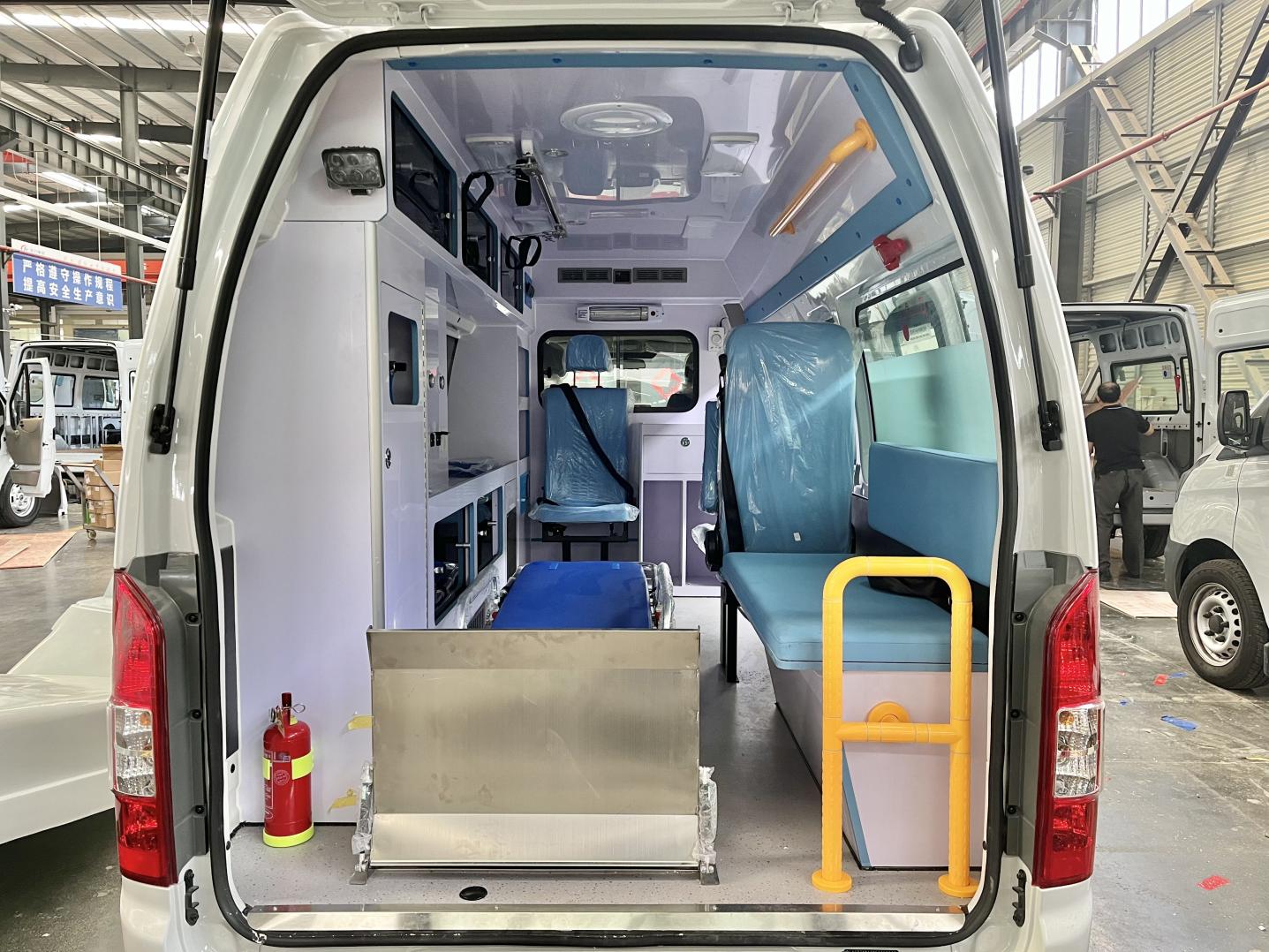

Medical cabin dimensions: Length × Width × Height 3300mm × 1540mm × 1580mm

Approach/departure angles: 15º/16.5º

Maximum speed: 150km/h

Engine model: 4K22D4M

Engine displacement: 2.378L

Emission standard: National VI

Rated power: 118KW

Fuel tank capacity: 65L

Drive type: Mid-engine rear-wheel drive

Minimum ground clearance: 170mm

Transmission: 5 forward gears, 1 reverse gear

Suspension type: Double wishbone torsion bar spring independent suspension / leaf spring non-independent suspension

Steering assist type: Hydraulic power steering

Braking type: Front disc rear drum, hydraulic braking
