Supervisory ambulance (Diesel National VI, MT)

Supervisory ambulance (Diesel National VI, MT)

Vehicle Parameters and Standard Equipment

Technical Requirements

Modified base vehicle (chassis): Iveco Eurocargo diesel, National VI emission standard, manual transmission

Appearance color: White/Red

Announcement parameters: Not specified in the provided text.

Maximum gross mass: 4000kg

Passenger capacity: 7 (including stretcher passengers)

Wheelbase: 3300mm

Vehicle dimensions: Length × Width × Height 5495mm × 2011mm × 2740mm

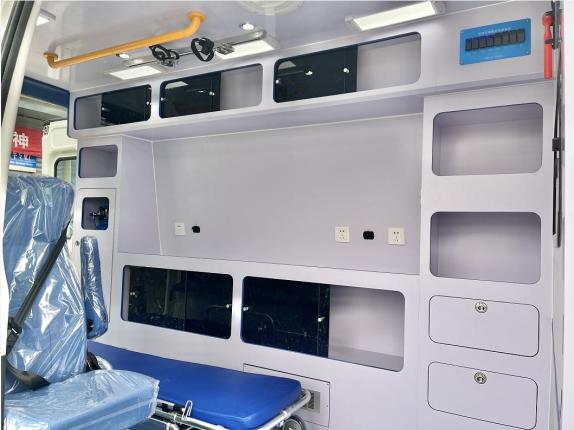

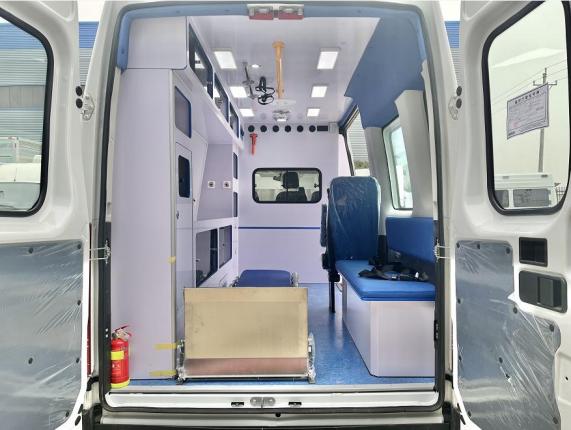

Medical cabin dimensions: Length × Width × Height 2930mm × 1750mm × 1850mm

Approach/departure angles: 17º/17º

Top speed: 130km/h

Engine model: F1AE8481G

Engine displacement: 1.994L

Emission standard: National VI

Rated power: 107KW

Fuel tank capacity: 80L

Drive type: Front engine, rear-wheel drive

Minimum ground clearance: 148mm

Transmission: 5 forward gears, 1 reverse gear

Suspension type: MacPherson independent suspension / leaf spring non-independent suspension

Steering type: Rack and pinion, hydraulic power steering

Braking type: Front disc, rear disc, hydraulic braking
