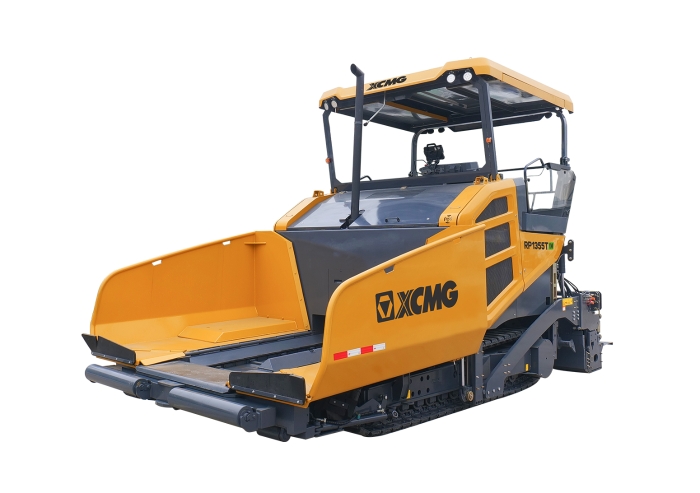

RP1355TIV Paver

RP1355TIV type paver features reliable quality and excellent operational performance. It can be widely applied to the paving operations of various grades of road surface materials, especially suitable for special construction requirements with large width and thickness. This machine adopts full hydraulic drive and micro-computer control, left and right independent drive, ultrasonic material level sensing control, electronic automatic leveling, vibration compaction, variable frequency heating and other advanced technologies of the world today. This enables the machine to have advantages such as good paving stability, uniform material feeding and supply, high pre-compaction density, good flatness, comfortable operation, convenient maintenance, energy conservation and environmental protection.

Product Features :

● The use of the mature and reliable Shangchai SC9DF330 fourth-generation Euro IV diesel engine ensures powerful performance, with a power output of up to 243 kW.

● The triple-combination high-efficiency heat dissipation device is adopted, which ensures continuous operation for a long time even under an ambient temperature of 50℃. The electrically controlled silicone oil clutch fan automatically adjusts its rotational speed according to the water temperature, achieving energy saving and noise reduction.

● The vehicle is equipped with independent left and right drive systems, controlled by a microcomputer. The paving speed is automatically controlled using constant-speed technology.

● The material feeding system is driven by four independent full-hydraulic systems. The feeding process is controlled by a material hammering technology, the material distribution is managed by an ultrasonic sensing control technology, and the material level is automatically controlled to ensure the stability of the material level in the material tank.
