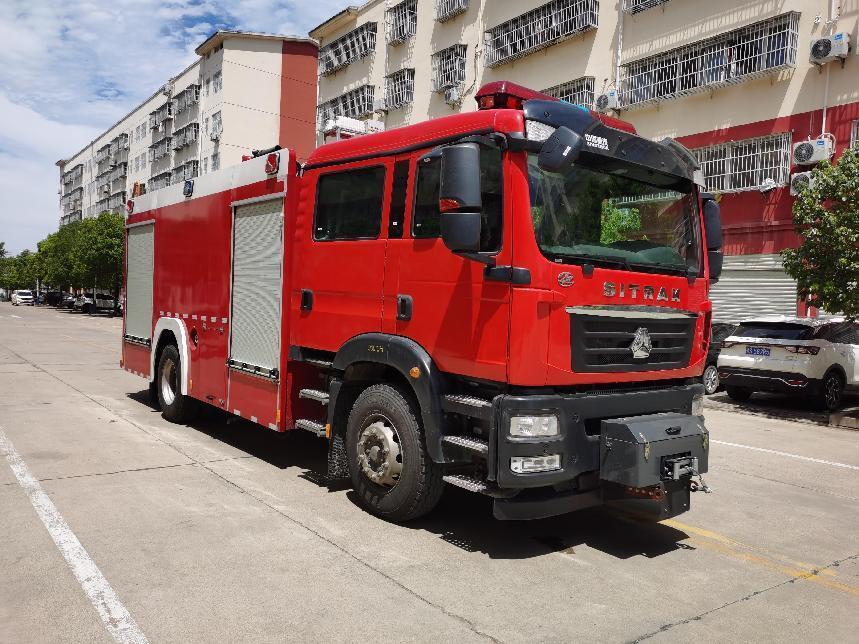

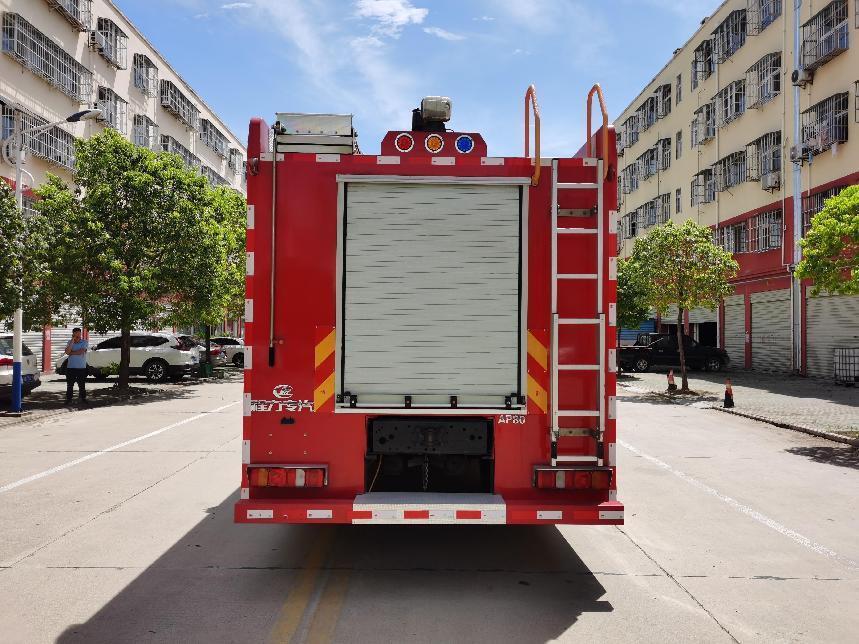

5.7T Compressed Air Foam Fire Truck

5.7T Compressed Air Foam Fire Truck

Model: China Heavy Truck Group Jinan Truck Co., Ltd. / ZZ5206N471GF5

Engine: China Heavy Vehicle Group Co., Ltd.

Model: MC07H.35-60

Power: 257kW

Drive type: Rear-wheel drive

Axle spacing: 4700mm

Emission standard: GB17691-2018, Stage VI

Capacity: Water: 5700 kg  Class B foam: 1600 kg  Class A foam: 240 kg

Material: Water tank: High-quality steel plate, treated with advanced anti-corrosion technology

Foam tank: High-quality stainless steel plate

Structure: Frame welding, longitudinal and transverse shock-proof plates are set inside the tank to reduce the impact of water inside the tank on the tank body during vehicle movement; the front and rear wall plates of the tank are folded with trapezoidal reinforcing ribs to ensure sufficient strength and rigidity of the tank.
