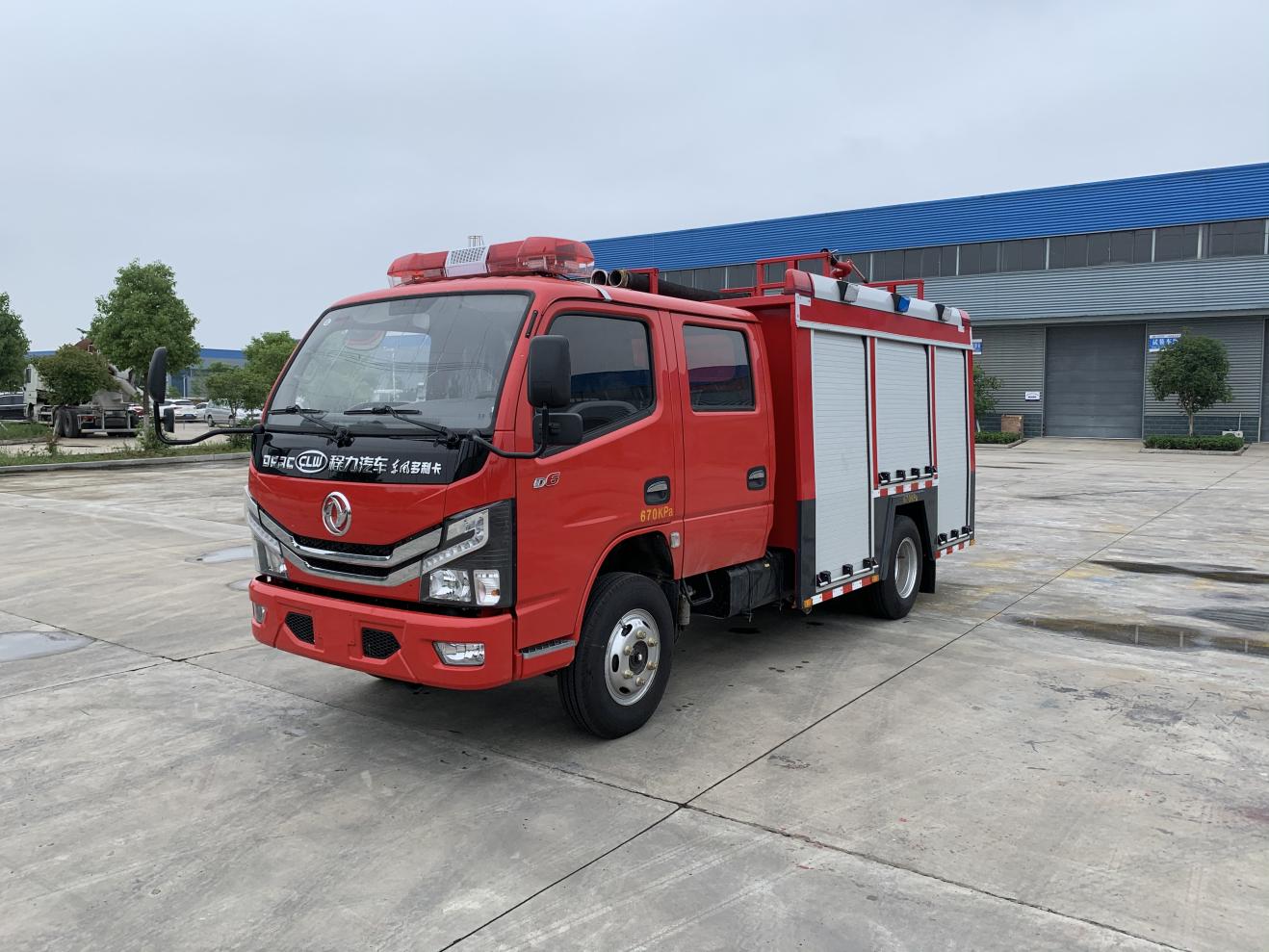

Dongfeng 3.5-ton water tanker fire truck

Dongfeng 3.5-ton water tanker fire truck

I. Chassis

Model:  EQ1075DJ3CDF

Axle spacing: 3308mm

Overall dimensions (mm): 6040 * 1980 * 2830

Engine: Full Chai 115 horse power

Model: Q23-115E60

Power: 85 (kw)

Emission standard: National VI

Drive type: Rear-wheel drive

II. Cab

Structure: Flat front, four-door, double-row cab.

Seat arrangement: 2 + 3 people

Equipment: In addition to the original vehicle equipment, it is also equipped with an auxiliary power take-off control switch, 100W alarm, rotation warning light switch, radio power line terminal.

III. Main parameters of the vehicle

Fire pump: CB10/20 fire pump

Flow rate: 20L/s at normal pressure

Pressure: 1.0MPa at normal pressure

Vacuum pump type: Piston type

Installation type: Rear-mounted

Approach angle / departure angle: 24° / 12°

IV. Tank capacity

Capacity: Water: 3500Kg

Material: The water tank is made of high-quality carbon steel plate. The interior of the tank is treated for corrosion. The bottom plate of the water tank is 4mm carbon steel plate. The side plates and sealing plates of the water tank are 3mm carbon steel plates. The top plate of the water tank is 3mm carbon steel pattern plate.

Structure: Frame welding. Internal anti-vibration plate

Equipment: 1 person access cover, with quick locking and opening device.

1 liquid level indicator.

1 sewage outlet, with stainless steel ball valve.

2 water filling ports (one on each side)

Technical requirements: Comply with XF39 "Fire Truck Firefighting Requirements and Test Methods" regulations.
