Heavy-Duty Special Transport Vehicle Truck

Heavy-Duty Special Transport Vehicle Truck

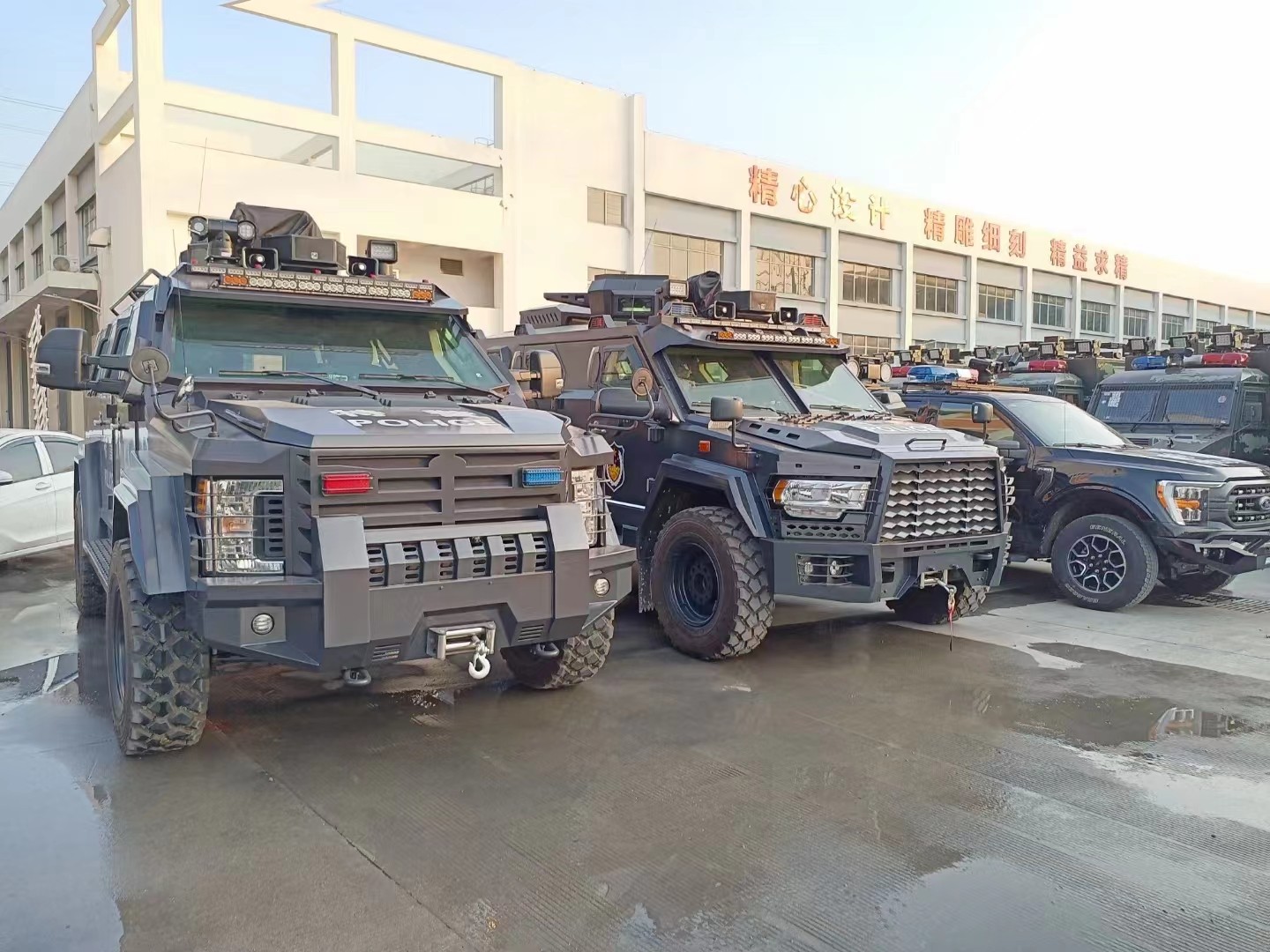

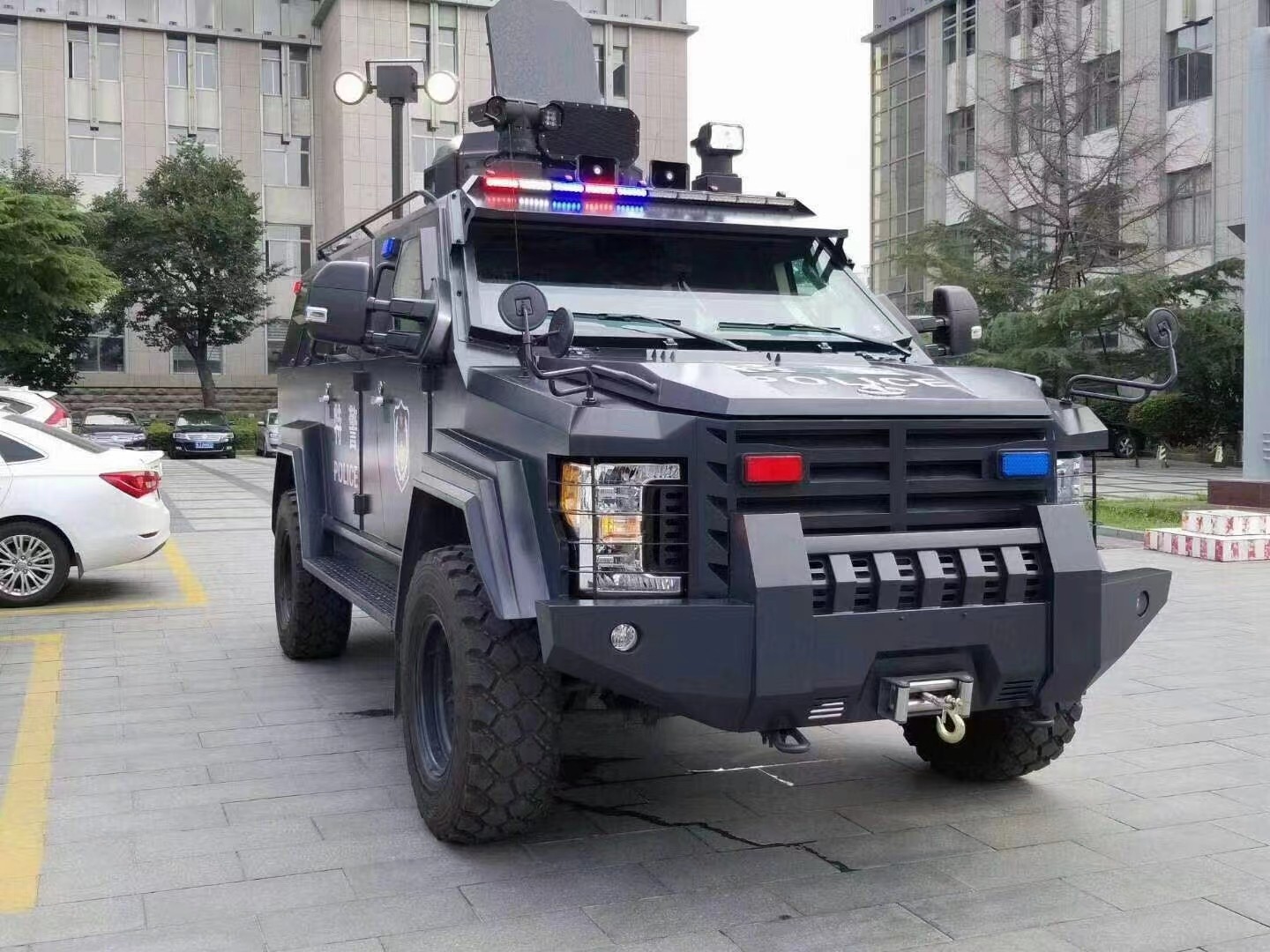

The JLS5092XYBA anti-riot armored vehicle, built on the United States Ford F-550's specialized 4x4 reinforced chassis, is the epitome of robust security and formidable presence. This vehicle features a six-sided bullet-proof body, a protective rotating turret, and a multitude of specialized equipment. Designed to meet the stringent Ministry of Public Security GA668-2006 B-level requirements for special riot vehicles, it can withstand attacks from 56 submachine gun steel core ammunition. With powerful performance, excellent maneuverability, and outstanding off-road capabilities, this armored personnel carrier ensures rapid and efficient response with its 5-door layout. Practical and reliable, it stands as the ideal solution for armored troop transportation.

Product Technical Parameters
Chassis Model
American Ford F-550 7.3L
Engine Model
DEVCT (V8, Gasoline)
Max Total Mass (kg)
8165
Displacement (L)
7.3
Maximum Power (kW/rpm)
255/3900
Maximum Torque (N.m/rpm)
624/3900
Maximum Speed (km/h)
≥130
Drive Form
4x4
Overall Dimensions (mm)
6680×2410×2955
Wheelbase (mm)
3675
Number of Seats (including pilot and co-pilot)
2+2+6
Front/Rear Wheel Base (mm)
2045/2045
Minimum Ground Clearance (mm)
320
Approach Angle/Departure Angle (°)
22°/18°
Front Overhang (mm)
1290
Rear Suspension (mm)
1610 (with spare tire)
Climb Grade (%)
≥50
Roll Stability Angle (°)
≥32
