High-Volume Drainage (Mother-Child) Emergency Rescue Vehicle (Mobile Robot Pump Station)

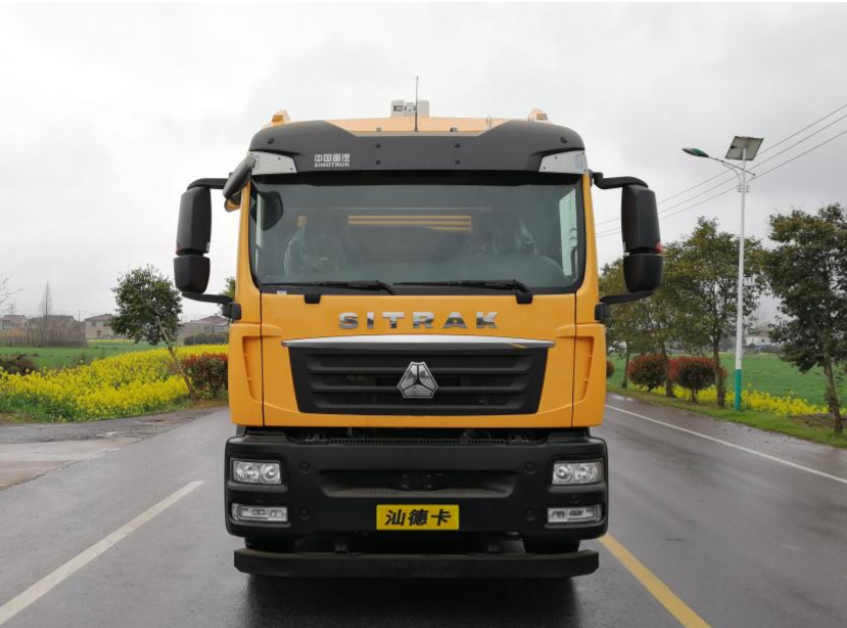

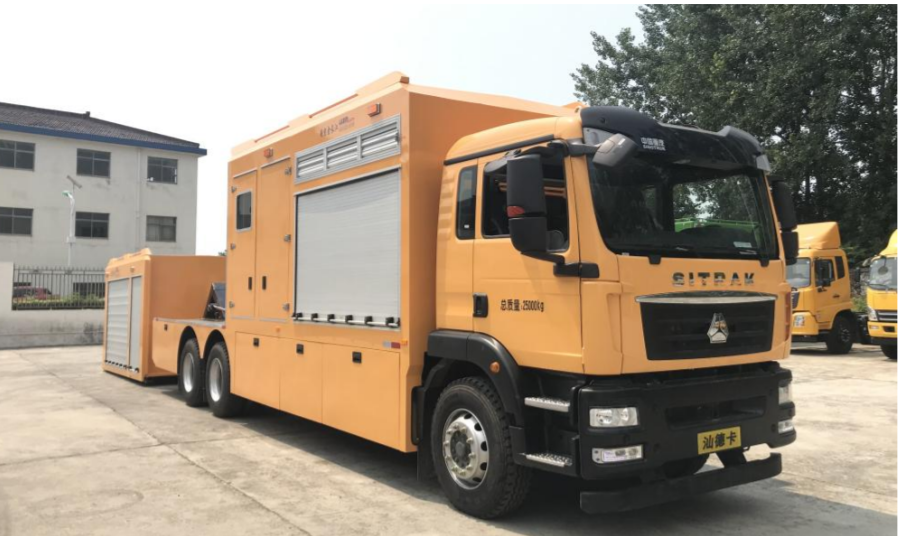

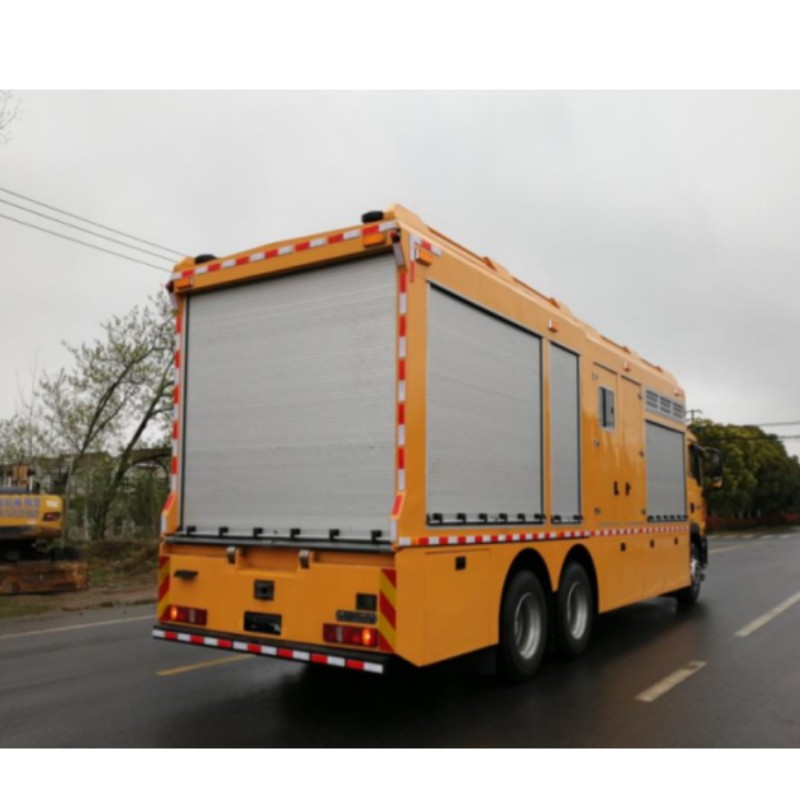

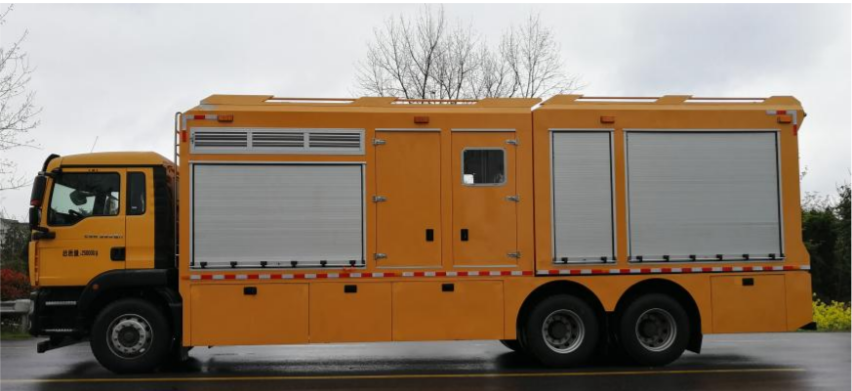

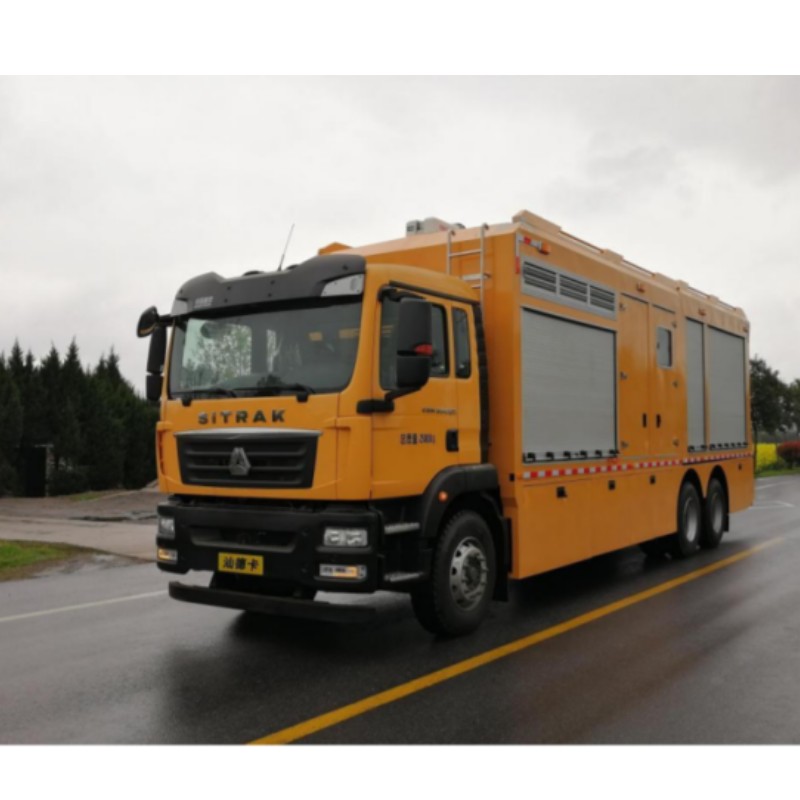

Overall Vehicle Appearance

I. Product Overview and Features:

The NJJ5251TPS6 High-Volume Drainage (Mother-Child) Emergency Rescue Vehicle is an emergency drainage vehicle capable of remote separation control. It is suitable for emergency drainage in low and hazardous environments such as urban underground garages, underground passages, culverts, and subways. It features high drainage capacity, a wide operating range, convenient operation, and reliable safety, addressing the issues of traditional drainage vehicles such as long pipeline arrangement times, small operating ranges, and low discharge rates. It is suitable for urban waterlogging drainage, fire emergency water supply, and other emergency rescue operations.

The vehicle is equipped with a high-end Shan De Ka brand chassis from China National Heavy Duty Truck Corporation, compliant with National VI emission standards, and features an electronic braking system with anti-lock braking, electronic stability control system, and electronic control braking system. It is equipped with heating and air conditioning, power steering to enhance the driver's comfort, and an intelligent human-machine interaction system with wireless remote control for easy operation.

The NJJ5251TPS6 High-Volume Drainage (Mother-Child) Emergency Rescue Vehicle mainly consists of a two-category truck chassis, generator set, drainage system, hydraulic system, mobile robot pump station, electrical system, lighting system, rest room (optional), and accessories.

Applicable Fields:

Urban roads, highway tunnels, especially suitable for water accumulation removal in low environments such as underground garages and subways.

Pumping and cleaning of polluted water surfaces.

Fire emergency water supply.

Flood control and emergency rescue, water drainage in submerged areas.

Drought resistance water supply, temporary water transfer.

Product Technical Features:

Customized submersible pumps and mobile robot pump stations can be selected according to customer needs to achieve high-volume drainage operations.

The submersible pump operation is convenient and flexible, saving manpower.

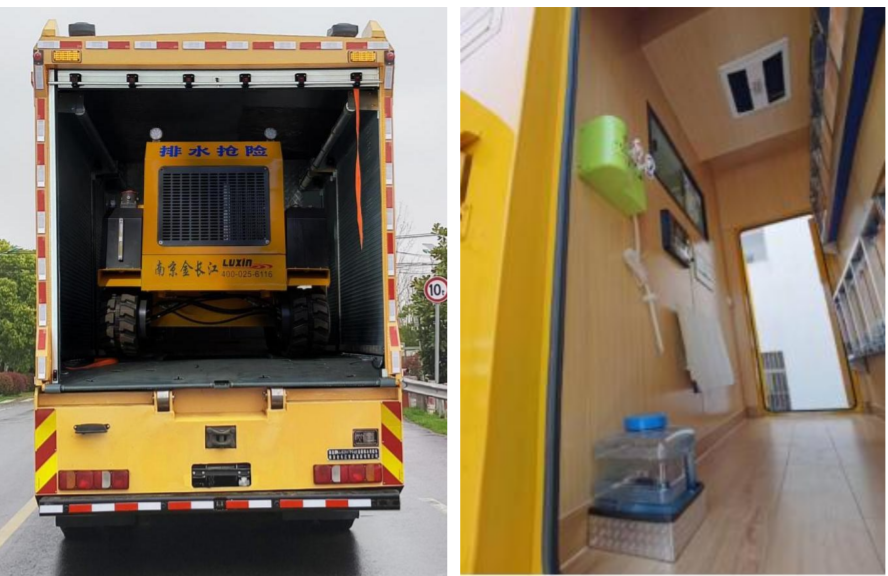

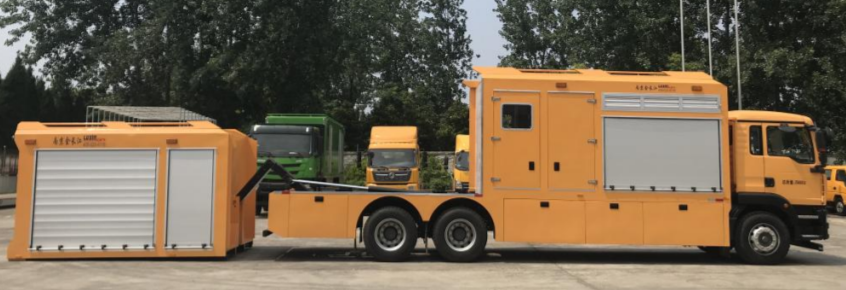

The mobile robot pump station has a wide working range, small size, fast travel speed, strong climbing ability, and can enter environments such as underground garages and subway stations for drainage. Its variable stroke mechanism meets the drainage needs of subway tracks.

Close-to-ground/remote control, high degree of intelligence.

According to customer needs, choose between a mobile robot pump station or a high-volume self-priming pump.

The vehicle is equipped with ABS, ESC, EBS systems to ensure vehicle driving safety.
