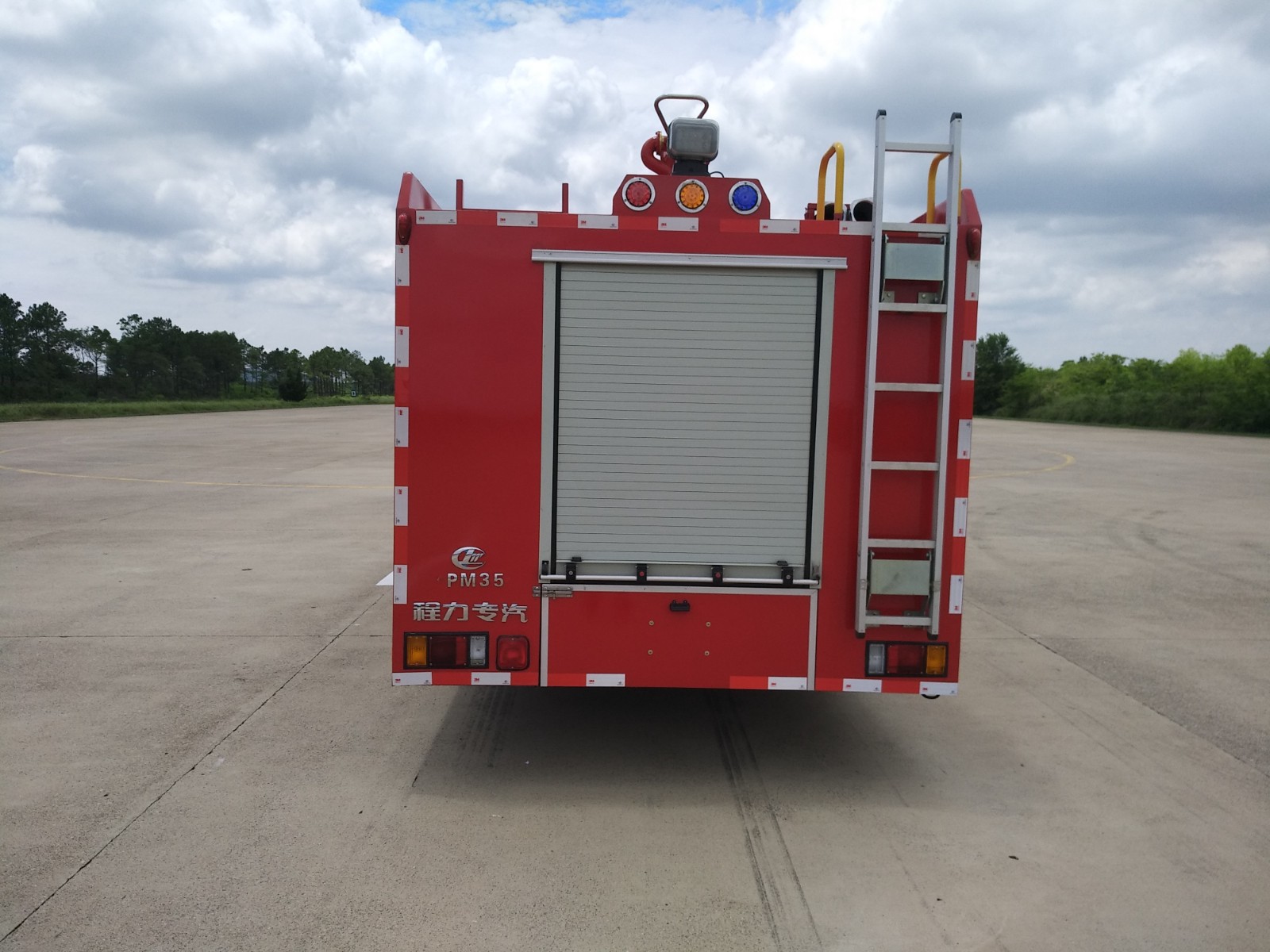

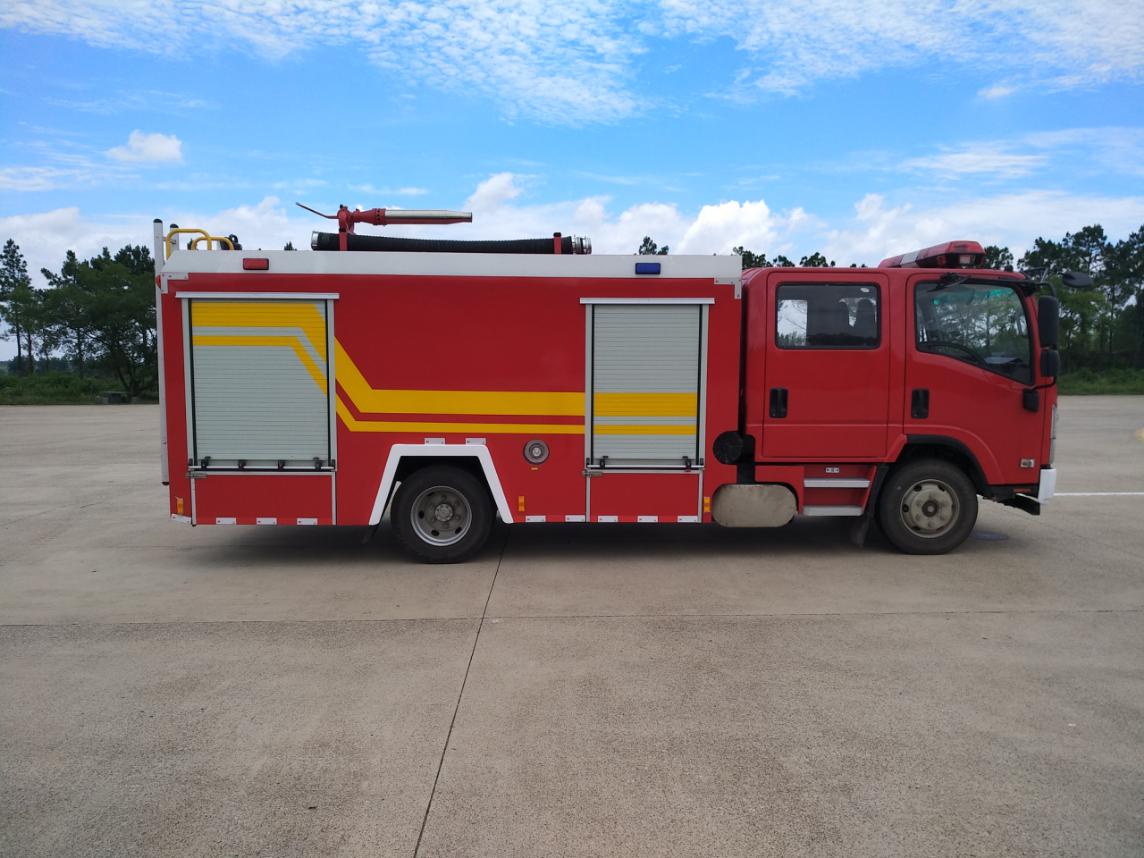

Isuzu 3.5T Fire-Extinguishing Water Tanker

Isuzu 3.5T Fire-Extinguishing Water Tanker

Tank

Capacity: Water: 3550 Kg

Material: Water tank: High-quality steel plate, treated with advanced anti-corrosion technology

Structure: Frame welded, with longitudinal and transverse anti-sway plates inside the tank to reduce the impact of water on the tank during vehicle movement; the front and rear wall plates of the tank are folded with trapezoidal reinforcing ribs to ensure sufficient strength and rigidity of the tank.

The top of the tank is equipped with a quick-opening manhole for easy access by maintenance personnel. Inside the tank, there are devices to prevent the formation of vortices when the water pump draws water, which could affect the flow rate, as well as a filter screen.

The tank is equipped with a stainless steel float ball liquid level indicator, which can display the capacity of the fire extinguishing agent in the tank through the liquid level gauge on the instrument panel; the bottom of the tank has a drain port with a ball valve.

The tank is equipped with one 76mm overflow pipe and one 76mm filling port on each side of the vehicle, facilitating water supply and refilling by other vehicles.

Equipment: One manhole with a quick-locking and opening device.

One liquid level indicator.

One drain port with a stainless steel ball valve.

Two water filling ports (one on each side)

Process: Welding is firm and reliable, with removal and cleaning of slag, false welding and other defects; after welding, a 24-hour static water pressure test should be conducted on the tank to ensure no leakage.
