Transfer ambulance (Ford 2.0L EcoBoost GTDI gasoline engine)

Transfer ambulance (Ford 2.0L EcoBoost GTDI gasoline engine)

Product Introduction

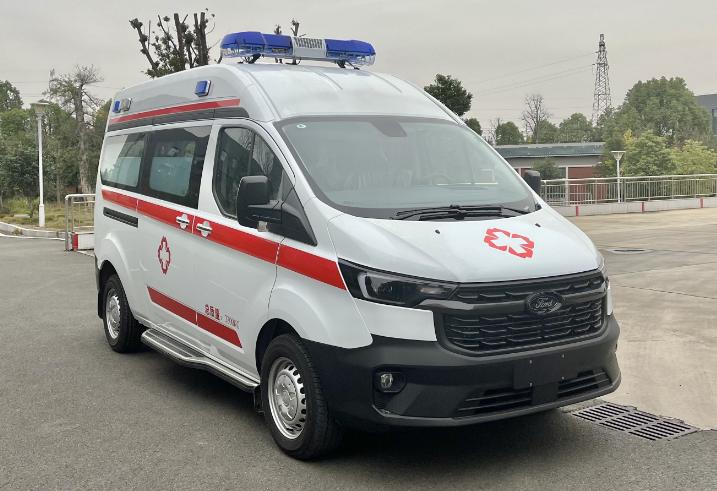

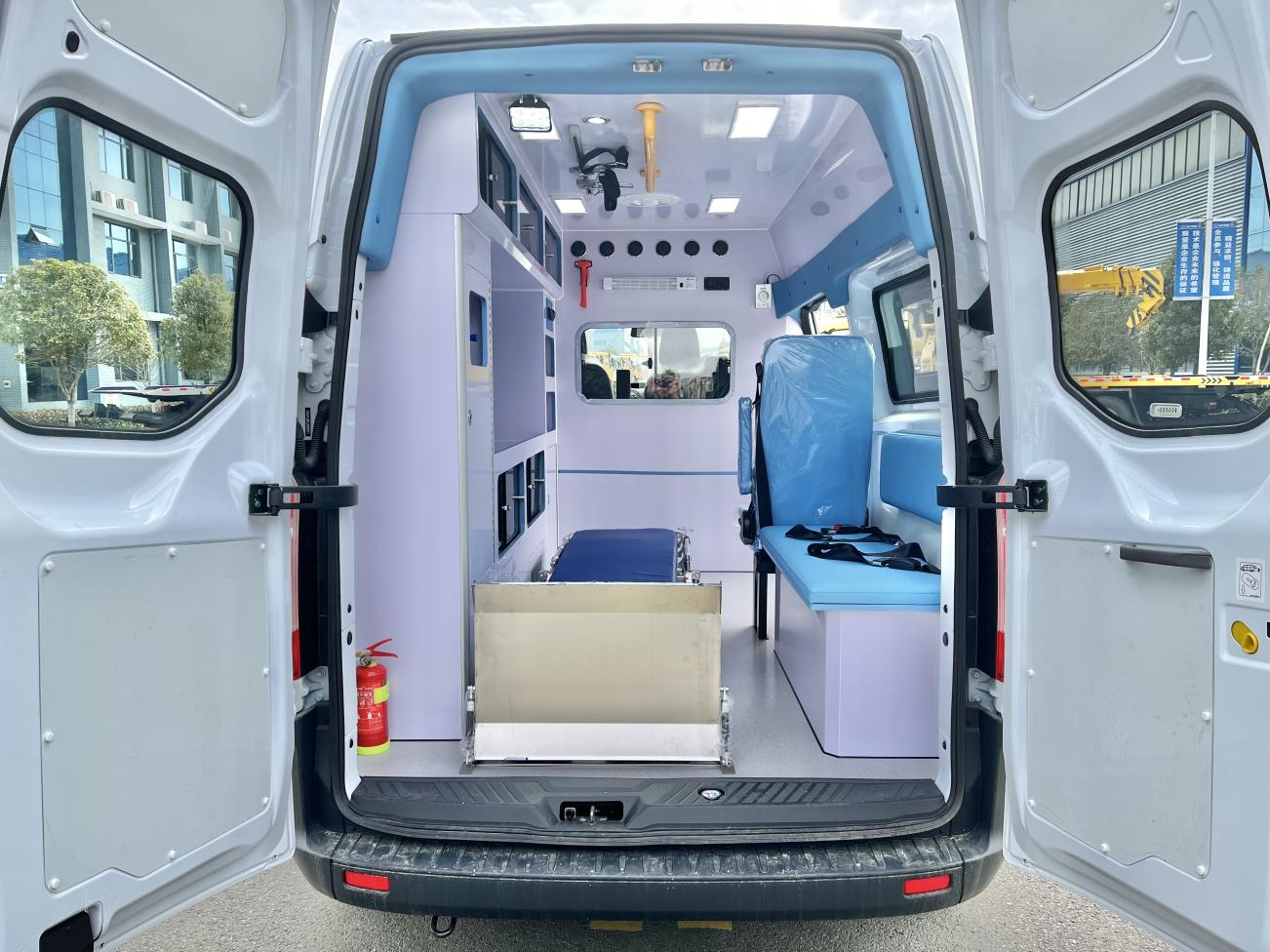

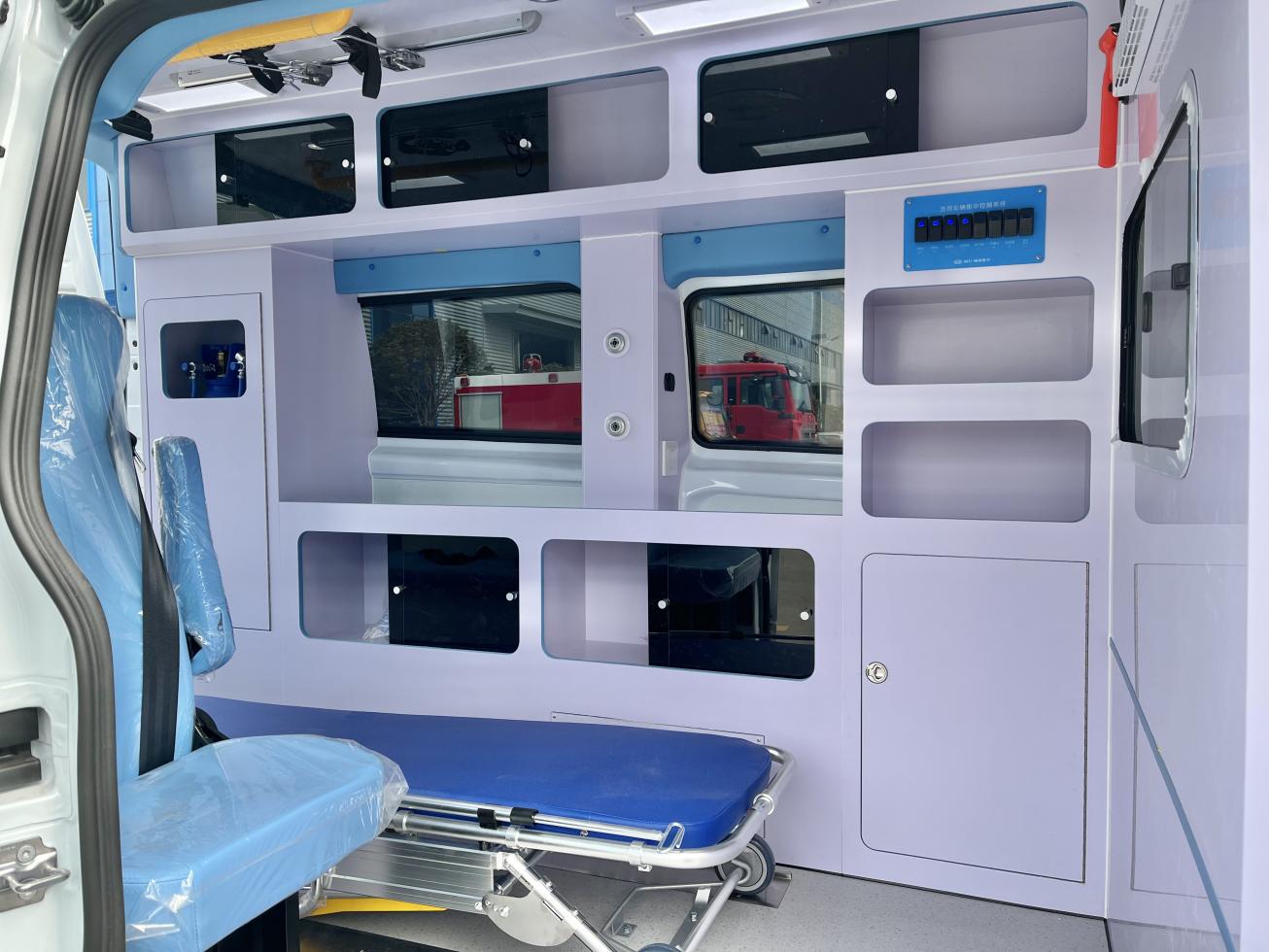

The New Transit Mid-Axis Mid-Roof Ambulance is based on the Ford New Transit Mid-Axis model launched by Jiangling Ford. It is equipped with a Ford 2.0T EcoBoost GTDI gasoline engine, and all models come standard with a cruise control system, a large central screen rearview camera, and a comprehensive active and passive safety protection system. It can reach a speed of 170 km/h. It uses Bosch ABS+EBD technology, which can actively detect and analyze road conditions and adjust the driving direction reasonably. It adopts domestically leading boron steel plates, with a high-strength integral cast chassis and multiple crossbeams to increase strength. The overall vehicle has a low center of gravity and is more stable, effectively ensuring the safety of the driver. The medical cabin is spacious and well-designed. The entire vehicle is modified with domestic leading medical vehicle technology and is suitable for various hospitals and emergency centers, especially for patient transfer and urban emergency rescue.

Parameter

Maximum gross mass: 3300kg

Passenger capacity: 7 (including stretcher passengers)

Wheelbase: 3300mm

Vehicle dimensions: Length × Width × Height (mm) 5341, 5520 × 1986, 2060 × 2395, 2455, 2480, 2580

Medical cabin dimensions: Length × Width × Height (mm) 2600 × 1700 × 1720

Approach/departure angles (°): 22/26, 22/15

Maximum speed: 170km/h

Engine model: ECOBOOST 4G20E6L

Engine displacement: 1.997L

Emission standard: National VI

Rated power: 162KW

Fuel tank capacity: 80L

Drive type: Front engine, front-wheel drive

Minimum ground clearance: 141mm

Transmission: 5MT manual

Suspension type: MacPherson independent suspension / leaf spring non-independent suspension

Steering type: Rack and pinion, hydraulic power steering

Braking type: Front disc, rear disc, hydraulic braking
