JDF5320GXFPM160/A6 Foam Fire Truck

Model Overview

JDF5320GXFPM160/A6 Foam Fire Truck is mainly composed of Mercedes-Benz Arocs3345 chassis, independent crew room, water tank, pump room, intelligent integrated control system, water gun, water cannon, fire fighting equipment accompanying the truck, and other ancillary facilities, etc. After modification, the load distribution is uniform, the mass position and stability are calculated accurately, and the internal space layout is reasonable, which can fully meet the operator's use requirements. After the modification, the load distribution of the whole vehicle is even, the center of mass position and stability are calculated accurately, and the layout of the internal space is reasonable, which can fully meet the requirements of the operators.

Vehicle Characteristics

JDF5320GXFPM160/A6 Foam Fire Truck is specialized in fire fighting and other emergency protection work. The main features of the vehicle:

(1) The whole vehicle has strong power, high reliability and safety, and the liquid tank capacity is up to 16T;

(2) Equipped with original imported fire pump, 100L/s @ 1.0MPa large flow, high combat efficiency;

(3) Equipped with intelligent control system, full-automatic pressure balance, high degree of automation, easy to operate;

(4) Integrated control system interface, real-time display of the chassis and pumps running state; set limit working state restrictions, abnormal situation alarm prompts; emergency, realize automatic pressure reduction, speed reduction, shutdown and other emergency treatment, high security;

(5) The skeleton of the upper compartment of the whole vehicle is made of aluminum alloy, lightweight design;

(6) Equipped with independent crew room, can independently carry 7 wartime firefighters;

(7) The vehicle is equipped with water hose, connector, ladder, tools, equipment, convenient and quick operation.

Chassis Features

Mercedes-Benz is a world famous German automobile brand, founded in 1900, headquartered in Stuttgart, its automobile products are exported to more than 190 countries and regions. Mercedes-Benz is famous for its high-quality and high-performance automotive products. The Arocs3345 special vehicle chassis is the latest product of Mercedes-Benz, which is positioned as an all-round chassis and a “new force in tuning”, and is known for its focus on tuning and high reliability and durability.

The new Arocs 3345 chassis inherits the brand DNA of Mercedes-Benz family, with its tough exterior and comfortable cab. The Mercedes-Benz Telligent® electronically controlled intelligent braking system is applied to make the steering operation easier.

Mercedes-Benz Arocs is equipped with ABS + ASR anti-skid system, independent dual-circuit compressed air braking system with 12.5 bar reserve pressure and 10 bar continuous braking pressure, front and rear full disc brakes with automatic adjustment of brake pad gap, electronic parking brake system and hill start assist system; all these active and passive safety assistance systems further enhance the driving safety. These active and passive safety systems further enhance the safety of the vehicle.

The new OM471 LA high-performance diesel engine adopts X-Pulse supercharged high-pressure common rail (maximum injection pressure 2,700 bar), SCR and EGR exhaust gas aftertreatment technologies, and Mercedes-Benz Telligent® intelligent engine management system,

Mercedes-Benz Telligent® intelligent engine management system, Mercedes-Benz Telligent® intelligent maintenance system, engine-assisted braking system and exhaust brake system.

Standard Mercedes-Benz G280-16, fully automatic intelligent transmission with 16 forward gears and 4 reverse gears. It automatically selects the appropriate gears for quicker gear changes; it has a practical hill-climbing driving mode and offers unique driving programs for different application conditions. A wide range of pick-up options and optimized connection angles. Power take-off: speed ratio 1.65, max. torque 2000 N.m, with 120 mm flange with end teeth, output from the top left of the gearbox. Hook-up and disconnection is only permitted when the vehicle is stationary. Power can be delivered while the vehicle is stationary.

The new Arocs 3345 chassis has improved beam material strength, firmer suspension, larger approach angle, passing angle and front and rear axle ground clearance, stronger load-carrying capacity and better passing, better torsional performance and dynamic stability. In addition, the Arocs series chassis has five other advantages that are very favorable for modification:

● A variety of high-performance engines are available, allowing for more reasonable powertrain options;

● More wheelbase and rear overhang combinations to meet the requirements of different upholstery arrangements;

● Matrix distribution of pre-drilled holes on the entire longitudinal beam, facilitating the installation of upfitting connectors;

● Equipped with powerful programmable control module (PSM) with convenient power and air extraction interfaces;

● With abundant extractor options and optimized connection angles, it can be adapted to a variety of work scenarios.

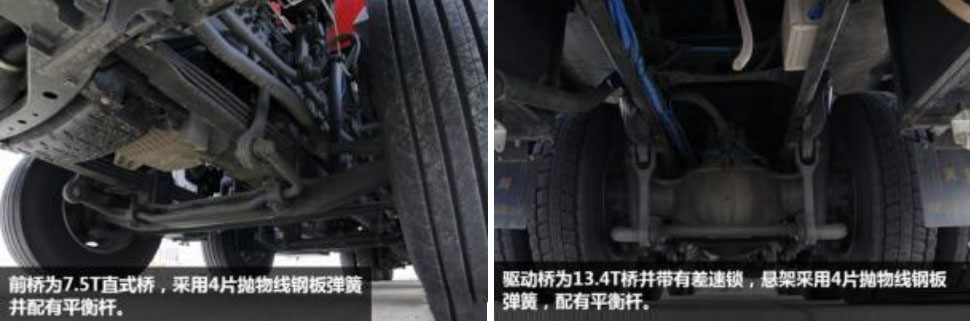

Chassis

Cab

Separate crew room
