GR2403IV Road Motor Grader
Description

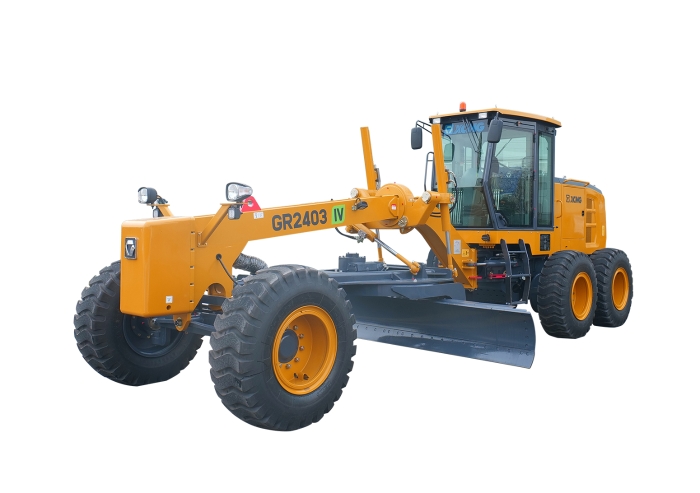

GR2403IV Road Motor Grader
GR2403IV scraper is mainly used for large-scale ground leveling and trenching, slope scraping, bulldozing, soil loosening, snow removal and other operations in areas such as highways, airports and farmlands. It is an essential construction machinery for military engineering, urban and rural road construction, water conservancy construction, and farmland improvement.
Parameter Technical
Item | Unit | GR2403IV |
Engine model | - | B6.7 |
Rated power / Speed | kW/rpm | 180/2000 |
Forward speed | km/h | 5、8、11、19、23、38 |
Retreat Speed | km/h | 5、11、23 |
Traction f=0.75 | kN | ≥87 |
Minimum turning radius | m | 7.3 |
Swept length x chord height | mm | 3965×610 |
Overall size of the machine | mm | 9172×2625×3420 |
Overall weight of the machine | kg | 1000 |
