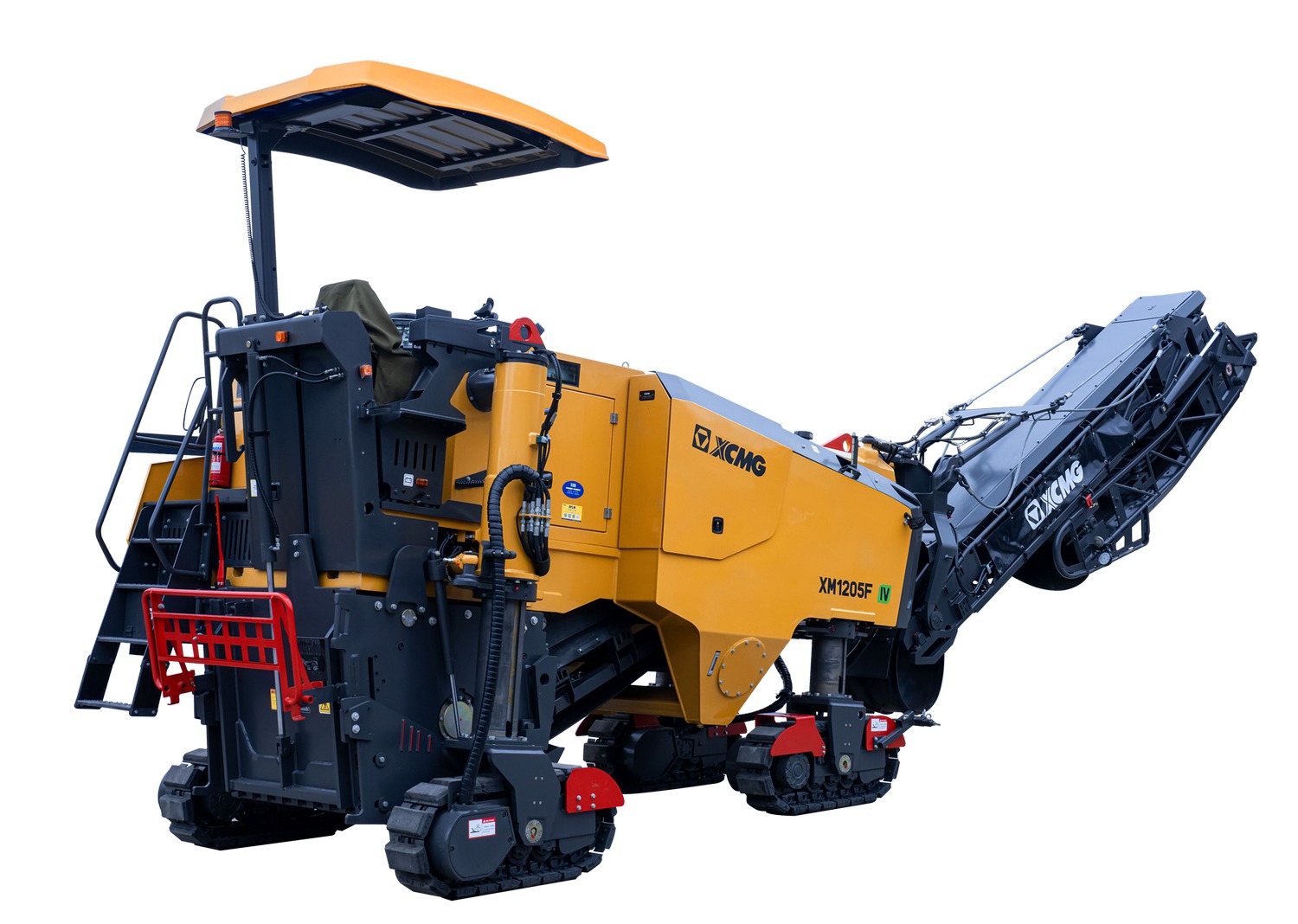

XM1205FIV Medium-sized road milling machine
Description
XM1205FIV Medium-sized road milling machine
The XM1205FIV road milling machine is a high-performance front-feed medium-sized milling machine, mainly used for the excavation and renovation of asphalt concrete pavement layers in highways, urban roads, airports, freight yards, parking lots, etc. It can efficiently remove pavement bulges, oil waves, web patterns, ruts, etc.; it can also excavate pavement potholes and grooves; and it can also be used for scarification of cement pavements and leveling of layer misalignment.

Parameter Technical
Item | Unit | XM1205FIV |
Rated power / Speed(kw/rpm) | kw/rpm | 191.5/2200 |
Engine manufacturer | - | Shangchai |
Maximum milling width | mm | 1000 |
Maximum milling depth | mm | 300 |
Work load | kg | 16200 |
Number of cutting tools | Put | 91 |
Milling cutter diameter with tool | mm | 930 |
