YH5070TQZ025P Complete floor-mounted flatbed type clearing vehicle

Vehicle-mounted crane

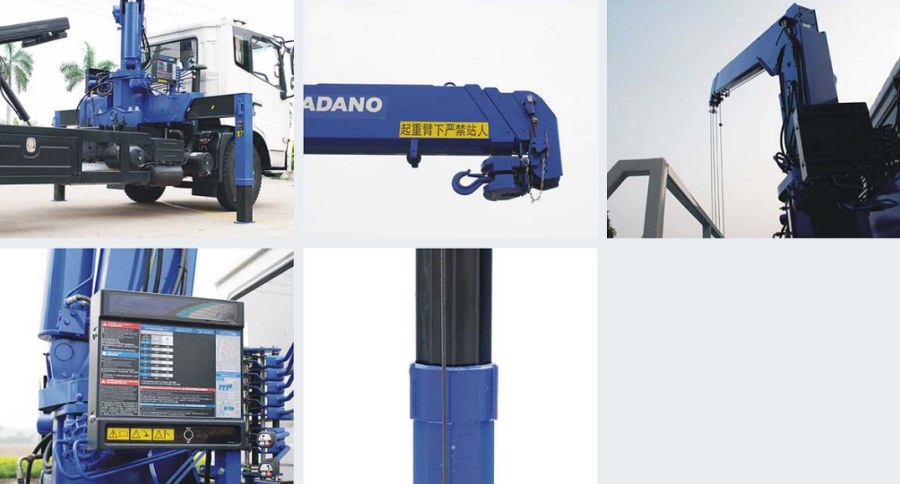

Equipped with Japanese TADANO (multi-field) crane ZE503GMH

Excellent quality, simple operation and maintenance;

Automatically store the hooks to further improve work efficiency without the need for manual tethering;

Stainless steel left and right operating rods match high-performance control valves to provide good responsiveness and fine-tuning control;

The seven-corner boom is stronger and lighter in quality;

Cationic electrodeposition coating treatment, better corrosion resistance;

Full swing and continuous rotation obtain better efficiency, and the boom is mechanically locked on the swing seat with a higher safety factor;

The three-point support system evenly distributes the load to protect the chassis frame from stress.

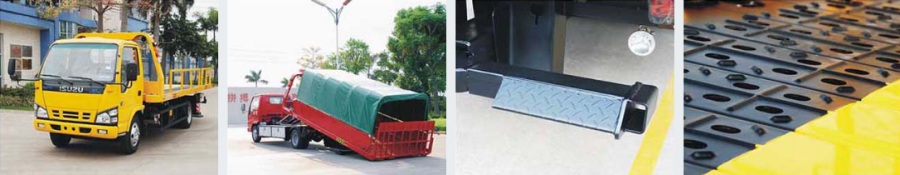

Flatbed layout

Anti-skid treatment on the board

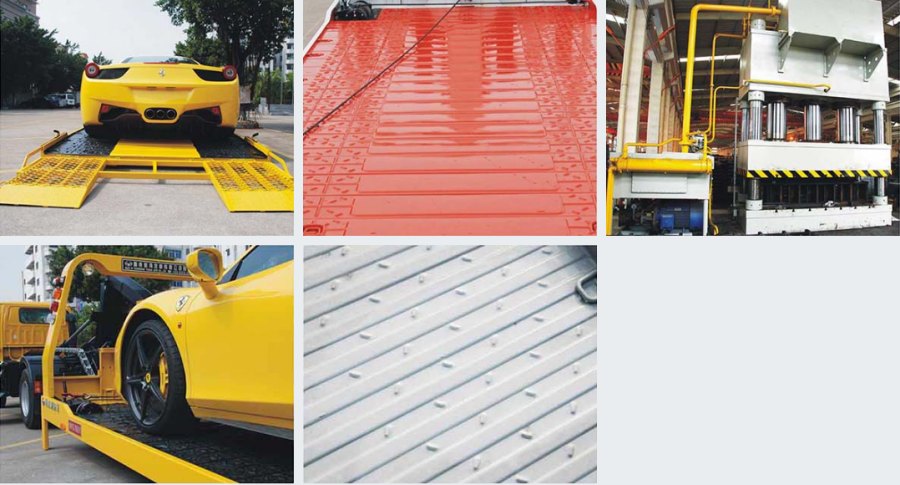

The new type of stamping adopts corrugated type combined with anti-skid nail structure, and the board surface becomes smoother.The resistance of the upper plate of the auxiliary wheel is reduced, the work is easier, and the anti-skid performance is excellent.

The board surface is smoother, stronger and more durable

The strength, stiffness and flatness of the assembly formed by cold stamping are much higher than that of the general curved pattern plate tiling structural panel.

There are only four assemblies on the board surface, which greatly reduces the deformation and welding stress caused by welding; the pre-deformation welding process is used to cancel out the stress between the welding deformation and the pre-deformation.

Hydraulic system

The flat-plate wrecker truck is fully hydraulically driven and integrates various functions such as lifting, carrying, towing, and pulling.

Hydraulic oil circuit

The hydraulic oil pipe adopts high-pressure galvanized steel pipe, which has high pressure resistance, good heat dissipation performance, beautiful appearance and durability, and its service life can be synchronized with the upper installation;

The hydraulic pipe joint adopts imported card sleeve type rigid connector (Germany), which greatly reduces the phenomenon of oil leakage and oil seepage at the interface, and the service life can also be synchronized with the installation.

Reversing valve

Imported multi-way directional control valve (Italy) is adopted and the installation method is optimized to ensure the safe operation of the multi-way directional control valve under various extreme conditions of use;

Oil cylinder

The inner walls of the cylinder are all boring and rolling processes, the inner walls of the cylinder are harder, wear-resistant and smoother, and the seals are fully protected;

The piston rods (solid) are all heat-treated, with high hardness and thick chrome plating, which can easily cope with high-intensity operations;

Fully use imported sealing components (Germany, the United Kingdom and Italy's special seal series), and adjust each sealing combination according to different cylinder structures in order to achieve the most perfect state of the cylinder;

The piston support ring adopts imported materials with high temperature resistance and wear resistance, and the design requires the use of a double support ring or a large-area single support ring structure.During wrecking operations, such as when the cylinder is subjected to a large lateral force, the high-standard support ring can ensure the stable operation of the cylinder and avoid damage caused by direct friction between the piston and the cylinder wall, the piston rod and the cylinder head;

The high-precision imported CNC machining center is used to process the cylinder piston and cylinder head to obtain a high standard of sealing.

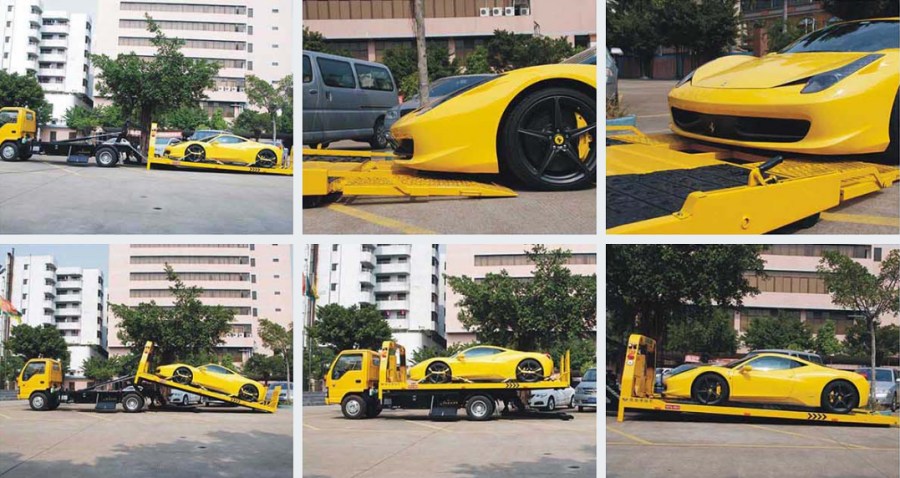

Fully floor-mounted introduction

The layout is completely landed

Even high-end sports cars with lower front and rear suspension are easy to board and will not collide, which can more effectively protect the rescued vehicles and have extremely high reliability!

Precision design

The angle between the front panel of the fully floor-standing flat panel and the ground is 2 degrees, and the angle between the rear panel of the fully floor-standing flat panel and the ground is 4 degrees.For high-end cars with lower chassis, the reserved space on the upper board is enough to avoid collision between the board and the car.

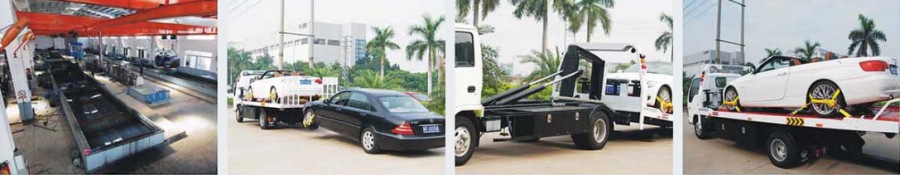

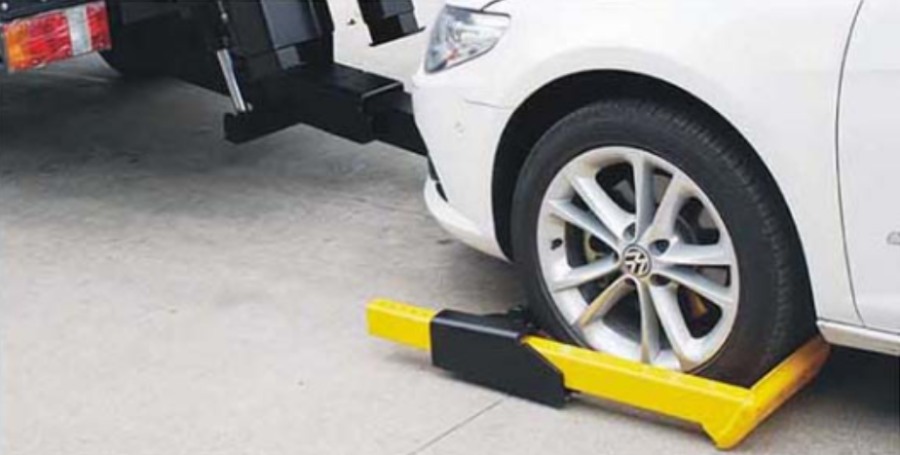

Lifting structure

Using the telescopic, lifting, and carrying folding actions of the support arm, the damaged vehicle is lifted from the front or rear, and then the whole vehicle is towed away from the scene.There are many structural forms of brackets for wrecker trucks, which can generally hold the axles, wheels, leaf springs, frames, etc. of the wrecker truck, which are easy to assemble and disassemble.

Individual requirements

Special operating environments require applicable special customization.In order to meet the needs of the market, our company provides reasonable personalized modification plans to strengthen its functions on the basis of the original.

Flat-plate wrecker trucks currently have: plate guardrail device, detachable ceiling device, plate reserved for more binding special holes, fixed front bracket and other personalized modification plans, can also be customized according to customer needs. Additional modifications

Installation plan.
