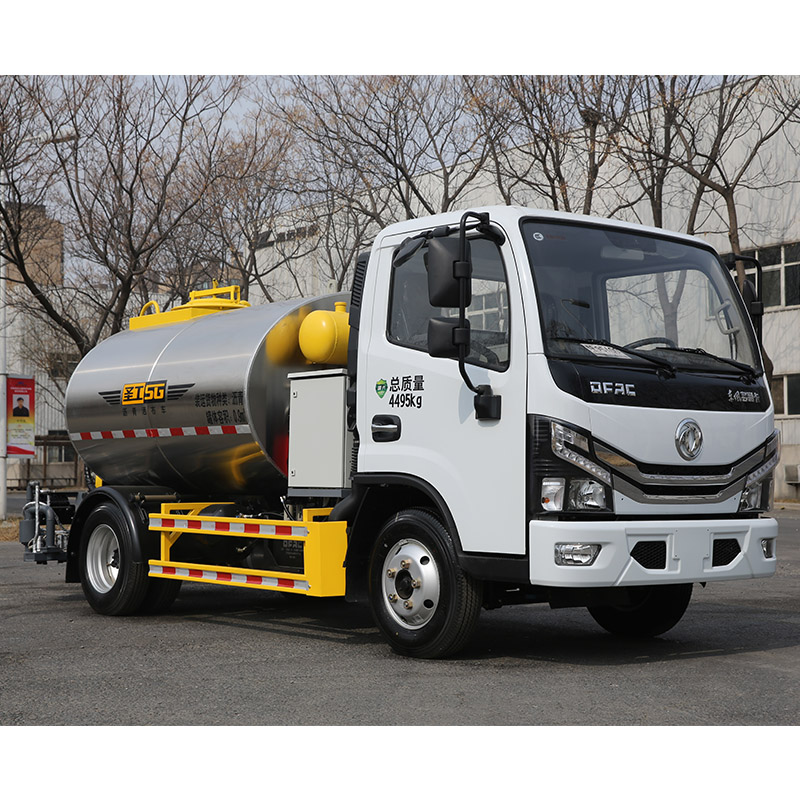

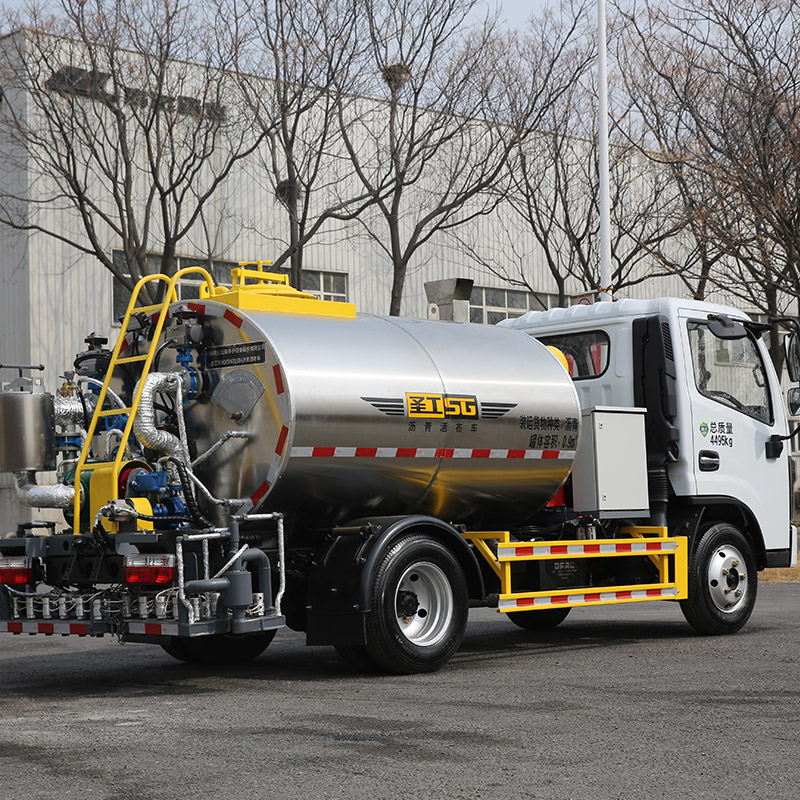

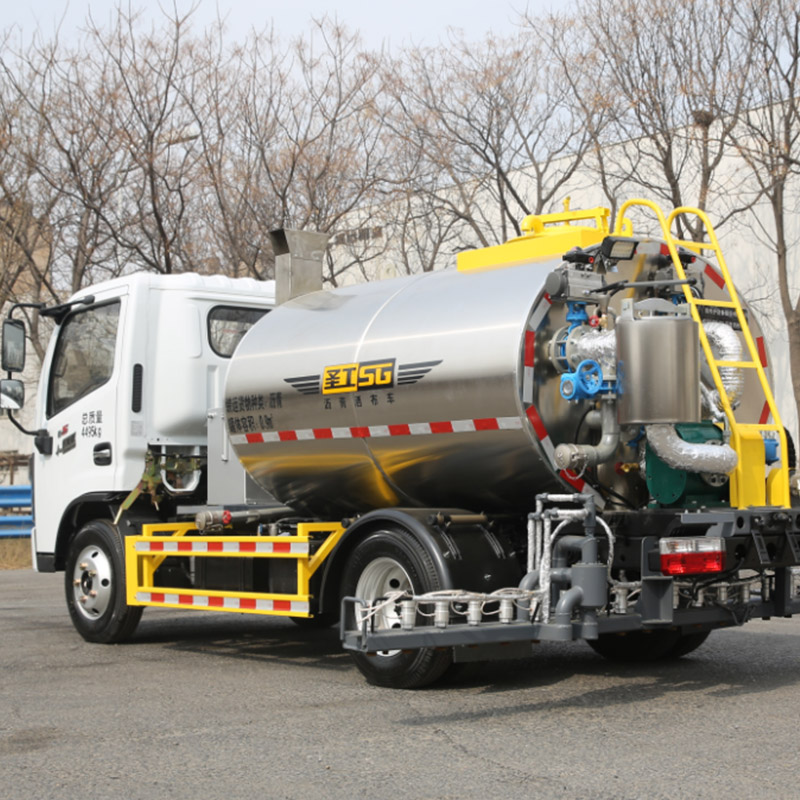

HGY5040GLQD6 Asphalt Spreader Truck
Description
Description :
1. Equipment use
3 square intelligent HGY5040GLQD6 blue asphalt sprinkler is my company according to years of engineering construction and equipment design and manufacturing experience, combined with the development of today's highways, developed both simple and economical operation of asphalt sprinkler machinery series of products, it is a professional sprinkler emulsified asphalt, diluted asphalt, hot asphalt, heat-modified asphalt and a variety of adhesives construction equipment.
The product absorbs similar products at home and abroad on the basis of various technologies, increased to ensure the technical content of the construction quality, highlighting the humane design to improve the construction conditions and the construction environment. Adopting intelligent control system, one person can complete the operation of the whole machine, only need to set the amount of sprinkling and related parameters in the cab, the control system will be adjusted according to the speed changes in the asphalt pump speed at any time, so as to ensure that the amount of asphalt sprinkler is accurate and uniform. The asphalt pipeline adopts automatic control valve, all kinds of construction cycle conversion can be completed by one-key operation. Asphalt pipeline and nozzle rack with thermal oil pipeline, the use of thermal oil internal heating to ensure that the pipeline is unobstructed; asphalt tank configuration of imported burners, heating using automatic temperature control system is safe and reliable. The nozzle rack adopts high-precision nozzles with three-overlapping sprinkling, and the nozzles are automatically controlled.
The product can be used for a variety of roads up and down the sealing layer, permeable layer, asphalt surface treatment, asphalt penetration pavement, fog sealing layer and other construction projects, especially suitable for urban road construction, but also for liquid asphalt or other heavy oil transport.
2. Working Principle
The working principle of asphalt sprinkler is through the asphalt pump from the asphalt storage pool will be hot asphalt into the asphalt tank; transported to the construction site, through the heating system will be asphalt heated to the working temperature; through the manipulation of the control system, open the asphalt pump and spraying valves; through the asphalt pipeline, the asphalt pump will be hot asphalt in accordance with a certain amount of sprinkling and a certain amount of sprinkler pressure according to the triple-overlapping effect of the spray spray spraying to the road surface. After the operation is finished, the asphalt remaining in the pipeline is returned to the asphalt tank through the pipeline system.
Main performance :
● The chassis used Dongfeng special chassis, strong carrying capacity, low fuel consumption, stable and lightweight operation, strong power;
● Adopting the chassis to take the power way, through the hydraulic system for asphalt sprinkling to provide power;
● Intelligent control system, one person can complete the operation of the whole machine, just set the amount of sprinkling and related parameters in the cab, the control system will be adjusted according to the speed changes in the asphalt pump speed at any time, so as to ensure that the amount of asphalt sprinkler accurate and uniform;
● Asphalt pipeline with automatic control valve, a variety of construction cycle conversion can be completed with one-key operation. Asphalt pipeline and nozzle rack with thermal oil pipeline, the use of thermal oil internal heating to ensure that the pipeline is unobstructed; the use of automatic control valves to achieve asphalt cycle sprinkling of automated conversion control, reducing the construction of labour intensity, improve work efficiency and quality;
● Asphalt tank configuration 100,000 calorie imported diesel burner, high combustion efficiency, fast heating speed, equipped with automatic temperature control system, stable, safe and reliable operation, heating speed ≥ 12 ℃ / h;
● Asphalt tank outer wall is packed with stainless steel sandblasted plate, corrosion resistance and durability, good insulation effect of the tank, temperature drop ≤ 12 ℃ / 8h (room temperature conditions);

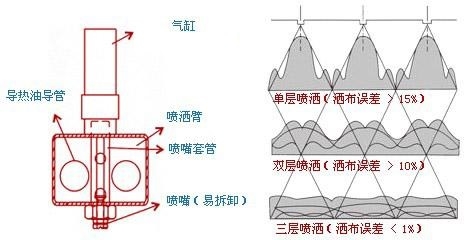

● The nozzle rack adopts horizontal folding structure, with anti-collision function; the use of high-precision nozzles three overlapping sprinkler, nozzle to achieve automatic control;
● Asphalt pumps and pipelines are heated by thermal oil insulation, cleaning-free at the end of construction;
● Asphalt pump using domestic famous brand gear pump, the pump self-priming performance, good sealing performance, smooth flow;
● Can be sprinkled with hot asphalt, modified asphalt, emulsified asphalt and other asphalt media.
Product Advantage :
| Serial number | Sub-items | Main performance |
| 1 | Working conditions | Ambient temperature: 0 ~ 45 ℃; air relative humidity: ≤ 95%; Altitude: ≤ 3000m |
| 2 | Composition | Consists of an automobile chassis, an asphalt tank body, an asphalt distribution system, a gas circuit system, a hydraulic system ,System, electrical operating system, power system, etc.; |
| 3 | The whole | Compact structure, beautiful appearance, strong bearing capacity, simple operation and stable performance; |
| 4 | Car Chassis | Special chassis for Dongfeng Automobile is adopted, which has strong bearing capacity, low fuel consumption and stable operation.Portable and reliable braking; |
| Engine emissions comply with: National VI | ||
| Engine power: 97 kW | ||
| Maximum total mass: 4495 kg | ||
| 5 | Asphalt tank | Volume of asphalt tank: 3 ㎡. The tank has the advantages of reasonable stress, safety and reliability ,The advantage of fast heating speed; |
| The inside of the tank body is provided with a wave board, which can prevent the medium in the tank from rushing forward and backward during the driving process.Potential safety hazard caused by striking; | ||
| The outside of the tank is wrapped with 50mm thick insulation cotton, which has good insulation effect. The cooling speed is: ≤12℃/8h; | ||
| The outer wall of the insulation layer is packed by a stainless steel frosted plate, which is beautiful and easy to clean; | ||
| The tank body is provided with an air vent to keep the normal pressure in the tank; | ||
| It has the function of self-suction and self-discharge, which can add and discharge asphalt by itself and improve the working efficiency. | ||
| 6 | Asphalt distribution System | Asphalt pump: adopt the domestic famous brand high viscosity asphalt insulation pump, which pumps .Strong capacity, large displacement, can better complete the circulation and spraying function of asphalt; |
| The asphalt pipeline is fully covered with heat transfer oil to ensure the smooth circulation of asphalt in the pipeline; | ||
| The asphalt distribution frame adopts the unique horizontal folding asphalt distribution frame of the company, which is reasonable .The asphalt circulation of the spraying frame and the accurate nozzle design ensure the uniform distribution of the asphalt.Uniformity and accurate distribution precision; | ||
| Hot asphalt, modified asphalt and emulsified asphalt can be sprayed, and the spraying effect is better than that of similar products .Products are particularly prominent; | ||
| Asphalt distribution amount: 0.2-3.0 kg/㎡, the maximum distribution amount is adjusted according to the distribution width; There are 24 nozzles in total, with 1 control and 4 control in the middle and 1 control and 2 control on both sides.Formula; | ||
| The spraying precision is high, and the spraying amount is not affected by the vehicle speed; | ||
| The spraying process is controlled by the computer in the whole process, and the spraying process can be arbitrary at any time.Adjust the distribution width to meet various requirements of the road surface; | ||
| 7 | Heating system | The burner is imported from Liyalu, Italy, and the calorific value is 10x 10kcal/h); |
| The U-shaped heating tube makes the system heat up faster; | ||
| The heat conducting oil realizes full coverage of the asphalt pipeline and can realize the function of cleaning-free; | ||
| The upper and lower limits of the heat transfer oil temperature can be set, and the burner can be set according to the set temperature .Automatic ignition and flameout, safe and reliable replacement; | ||
| 8 | Air circuit system | The main vehicle provides the air source to ensure that the construction is smoother and the output of compressed air can meet the requirements .Actions such as asphalt spraying and sprinkler rack lifting; |
| Adopt high-speed and long-life solenoid valve and gas path components; | ||
| The air source of the main vehicle and each air source are respectively controlled by different pressure regulating valves and ball valves, While ensuring the air source of the main vehicle, each air path is not affected by each other; | ||
| 9 | Power system | The power of the hydraulic system is taken off by the main vehicle to meet the requirements of the asphalt pump for asphalt distribution .Demand; |
| 10 | Electrical system | Intelligent control system, all kinds of spraying requirements can be operated by one person in the cabCheng; Simple operation, with manual/automatic operation mode, to ensure the constructionAnd that work efficiency is improved; |
| According to the changes of asphalt density and load, the parameters of the system can be corrected by the computer. Carry out calibration, so as to accurately control the displacement of the asphalt pump and control the error of the distribution amount1.5%; | ||
| Speed measuring gear is used to accurately detect the speed of asphalt pump to ensure the accuracy of asphalt distribution. | ||
| The distribution box is designed with high protection and anti-fouling design to reduce the asphalt in the components of the distribution box.And dust pollution; | ||
| 11 | Hydraulic system | The key hydraulic components are all well-known brands at home and abroad, with stable and reliable quality. |
Parameters
| Serial number | Parameter name | Parameter value |
| 1 | Product name | Asphalt distributor truck |
| 2 | Announcement model | HGY5040GLQD6 |
| 3 | Chassis model | EQ1045SJ3CDF |
| 4 | Chassis manufacturer | Dongfeng Motor |
| 5 | Engine model | Q23-132E60 |
| 6 | Chassis engine power | 2300ml/97kW |
| 7 | Emission standards | China VI (China VI) |
| 8 | Wheelbase | 2950 mm |
| 9 | Number of permitted passengers in the cab | 2 (person) |
| 10 | Approach/departure angle | 27/10(°) |
| 11 | Front/rear overhang | 1055/1555mm |
| 12 | Tire | 6.50R16LT 10PR |
| 13 | Total mass | 4495kg |
| 14 | Maximum speed | 110 km/h |
| 15 | Tank volume | 3m |
| 16 | Width of distribution | 3800 mm |
| 17 | Asphalt distribution quantity | 0.2-3.0 kg/m |
| 18 | Spreading medium | Hot asphalt, emulsified asphalt, modified asphalt |
| 19 | Burner power (heating value) | 10x10kcal/h |
| 20 | Temperature control | Automatic temperature control system |
| 21 | Heating rate of asphalt | 12℃/h |
| 22 | Dimensions (L X W X H) | 5560x1950x2325 mm |
