Traffic Cone Collector JTC400A

Cone Bucket Storage Capacity(only)	320
Capacity of slanting line	Yes
Maximum placing speed(km/h)	20
Emission standard	National VI
Maximum permissible total weight of chassis(t)	14
Overall dimension(mm)	7525x2500x3880

Inquiry Email Tel

Description

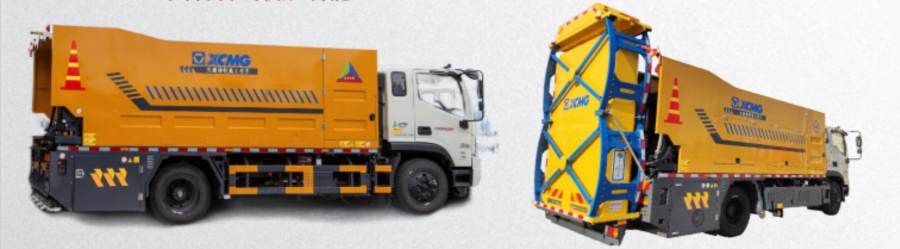

With diagonal take-up and take-down function 100K crash pad

Storage Capacity	400/pc	Anti-Collision Mat Model	100K	Overall Dimension(LXWXH)	7525x2500x3100
Maximum Placement Speed	20km/h	Specification of Cone Bucket	900x440	Overall Dimension(LXWXH)	8175x2500x3735

Product Highlights :

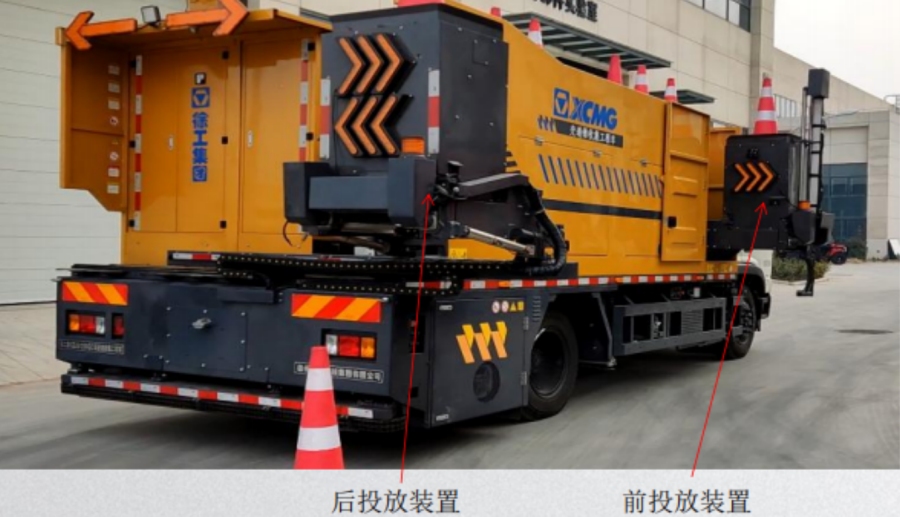

① Double putting device, programme control front and back work alternately, to achieve continuous, fast putting.

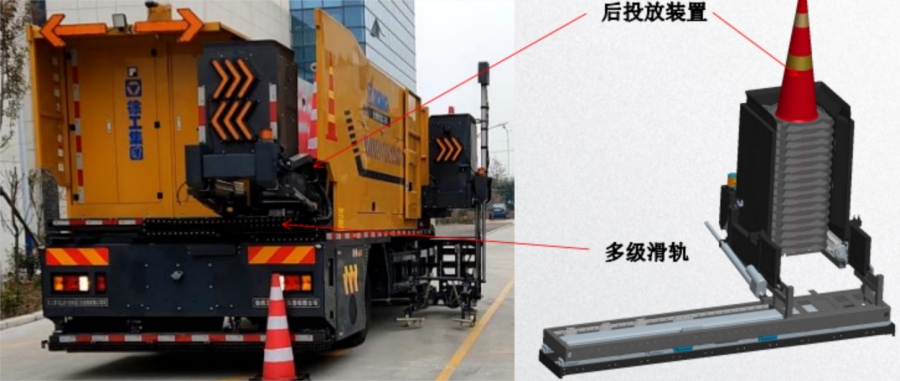

②Tail multi-stage slide for automatic diagonal placement.

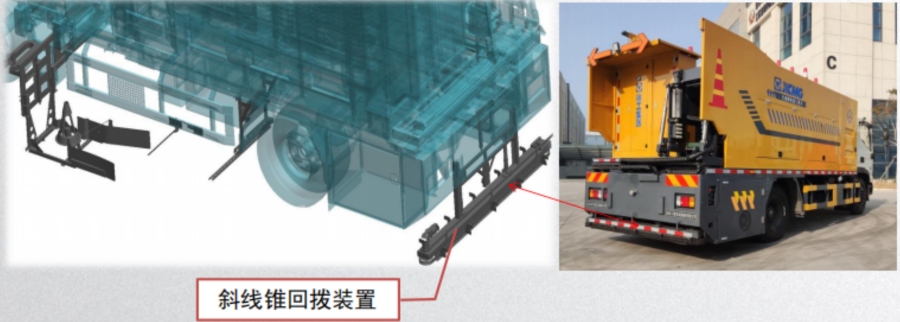

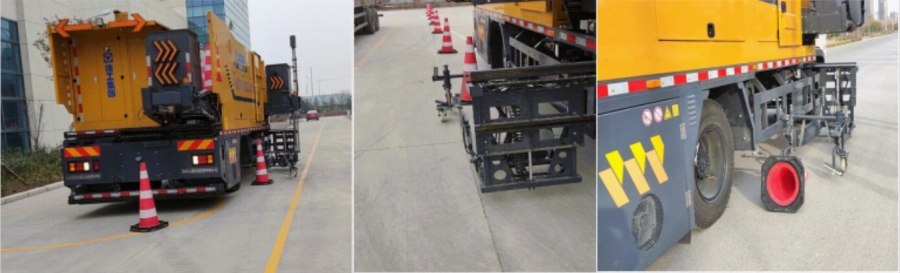

③ Tail pivot device for automatic recovery of slanting cones.

④ Intelligent control technology

Speed matching technology

Intelligent control of cone placement speed based on vehicle speed to ensure stable placement spacing.

Intelligent monitoring and fault diagnosis

Setting up sensors in each link, closed-loop control, automatic detection and output of fault codes when abnormalities occur, and setting up manual monitoring windows.

Parameters

Product Performance	JTC400 Series
Cone-Carrying Capacity	400
Slanting line take-up and down function	yes
Minimum Cone Distance	≤1m
Maximum operating speed(4m)	≥10km/h
Anomalies, offset conesRecovery	yes
Whether or not it can be equipped with an optional anti-bumping deviceCollision avoidance device	yes
