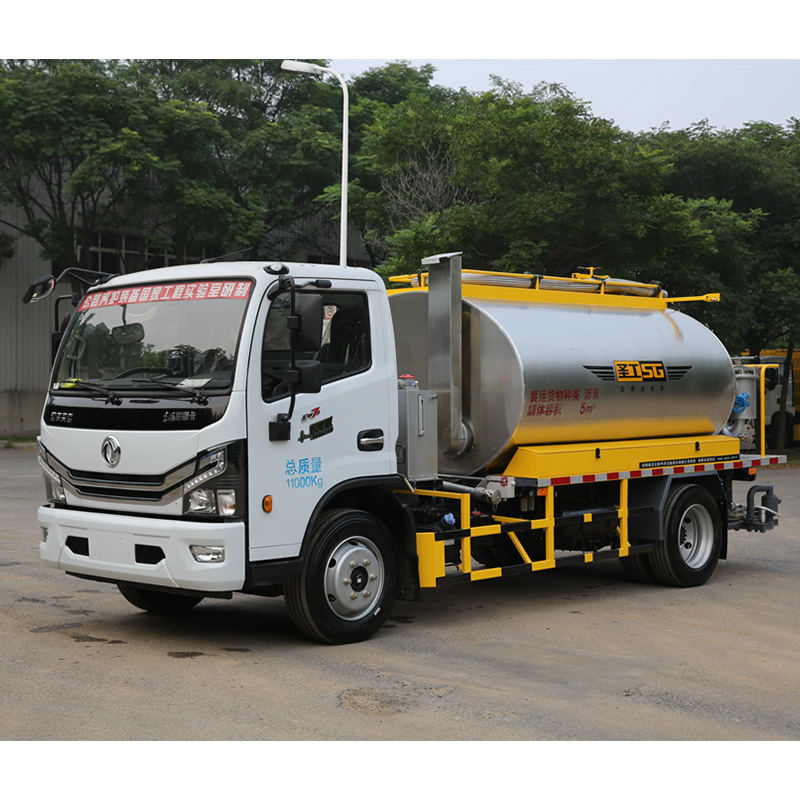

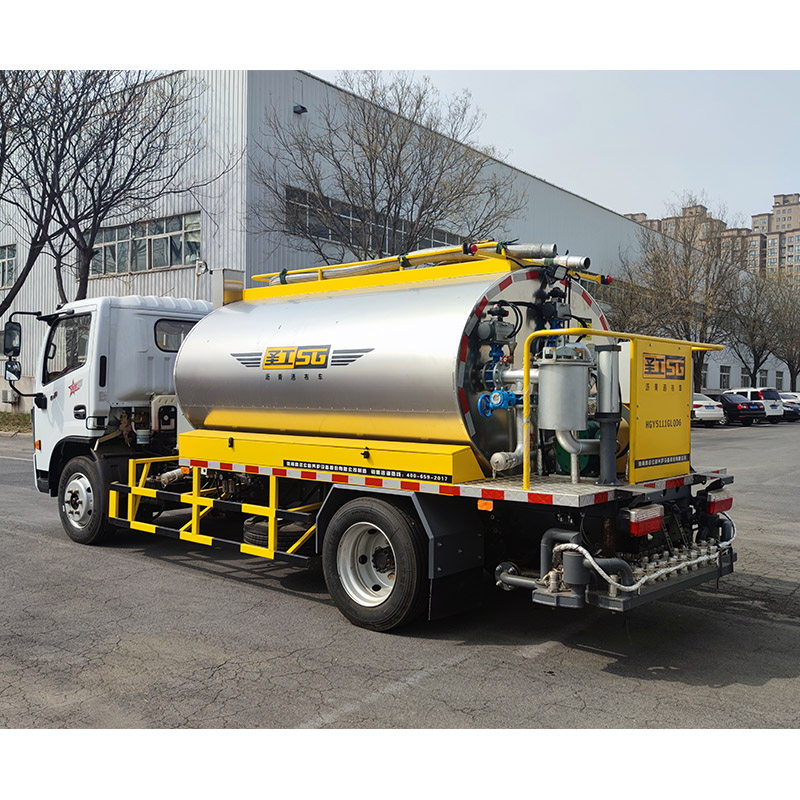

HGY5111GLQD6 Asphalt Sprinkler

Description :

1. Equipment Use

HGY5111GLQD6 type asphalt sprinkler is my company according to years of engineering construction and equipment design and manufacturing experience, combined with the development of today's highway, developed both simple and economical operation of asphalt sprinkler machinery series of products, it is a professional sprinkler emulsified asphalt construction equipment.

The product absorbs similar products at home and abroad on the basis of various technologies, increased to ensure the technical content of the construction quality, highlighting the humane design to improve the construction conditions and the construction environment. Intelligent control system, one person can complete the operation of the machine, only in the cab to set the amount of sprinkling and related parameters, the control system will be adjusted according to the speed of the vehicle speed at any time to ensure that the amount of asphalt sprinkler accurate and uniform. Asphalt pipeline with automatic control valve, a variety of construction cycle conversion can be completed with a key operation. The asphalt tank is equipped with imported burner, and the heating is safe and reliable with automatic temperature control system. The nozzle rack adopts high-precision nozzle three overlapping sprinkling, nozzle to achieve automatic control.

2. Working Principle

The working principle of asphalt sprinkler is through the asphalt pump from the asphalt storage pool will be emulsified asphalt sucked into the asphalt tank; transported to the construction site, through the heating system will be heated to the working temperature of asphalt; through the manipulation of the electrical control system, open the asphalt pumps and spray valves; through the asphalt pipeline, the asphalt pump will be emulsified asphalt according to a certain amount of sprinkler spraying and a certain amount of sprinkler pressure of the spraying effect of the spraying to the road surface. After the end of the operation, through the high-pressure air on the asphalt pipeline system residual asphalt cleaning.

3. Construction Process

Asphalt sprinkling is through special equipment asphalt sprinkling trucks emulsified asphalt according to a certain amount of sprinkling and sprinkling pressure evenly sprinkled on the road surface, mainly used for the upper and lower sealing layer of the road surface, permeable layer, asphalt surface treatment, asphalt penetration pavement, fog sealing layer and other construction projects.

Product Features :

● The chassis used in the domestic well-known Dongfeng chassis, strong power, strong load-bearing capacity, stable and convenient operation;

● Adopting the chassis to take the power way, through the hydraulic system for asphalt sprinkling to provide power;

● Intelligent control system, one person can complete the operation of the whole machine, just set the amount of sprinkling and related parameters in the cab, the control system will be adjusted according to the speed changes in the asphalt pump speed at any time, so as to ensure that the amount of asphalt sprinkler accurate and uniform;

● Asphalt pipeline with automatic control valve, a variety of construction cycle conversion can be completed with a key operation.

● The asphalt tank is equipped with 100,000 calorie imported diesel burner, high combustion efficiency, fast heating speed, safe and stable operation;

● Asphalt tank outer wall is packed with stainless steel plate, corrosion resistance and durability, good insulation effect of the tank, temperature drop ≤ 12 ℃ / 8h (room temperature conditions);

● The nozzle rack adopts horizontal folding structure, with anti-collision function; nozzle rack height can be adjusted to meet the driving and construction needs;

● The use of high-precision nozzles three overlapping sprinkler, nozzle to achieve automatic control;

● Asphalt pump adopts domestic famous brand, with good sealing performance, smooth flow, large speed adjustment range and high wear resistance.

● Hydraulic system uses domestic famous brand hydraulic components, stable and reliable performance.
