YH5080TQZ185T Tow-type Barrier Truck (Light Duty)

Crane arm

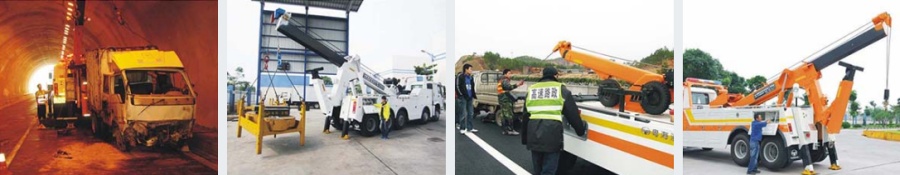

The lifting type clearing truck can generally be equipped with variable amplitude boom, so as to lift the damaged vehicle from one end (or one side) or the whole vehicle, and set it right for lifting.

Can also use the boom expansion, amplitude, the accident vehicle from the roadbed and the roadbed near the place of traction or lifting to the road surface to set right.

Lifting mechanism

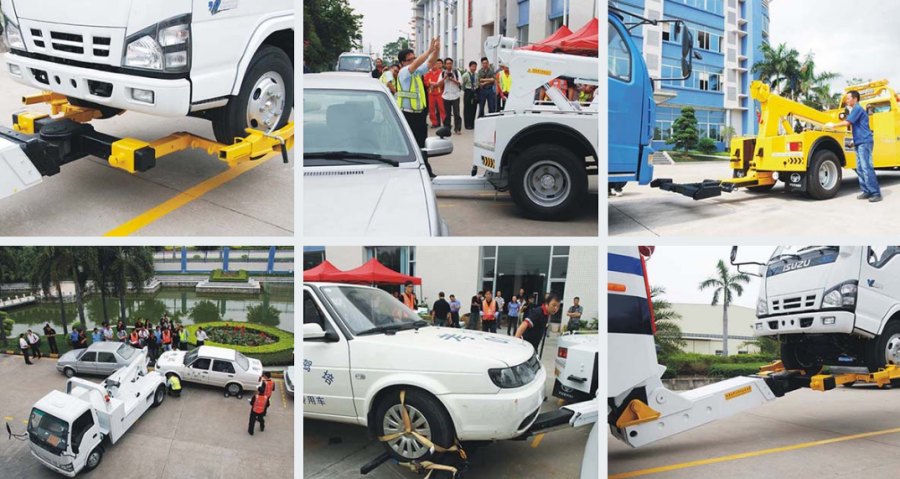

The lifting function is the most important function of the clearing truck, which is to utilize the telescoping, lifting, folding and other actions of the carrier arm to lift the damaged vehicle from the front or rear, and then tow the whole vehicle away from the scene. There are many kinds of structure forms of the bracket, generally can lift the axle, wheels, steel plate spring, frame of the accident vehicle, etc., and it is easy to install and dismantle.

Hydraulic system

The flat-plate wrecker truck is fully hydraulically driven and integrates various functions such as lifting, carrying, towing, and pulling.

Hydraulic oil circuit

The hydraulic oil pipe adopts high-pressure galvanized steel pipe, which has high pressure resistance, good heat dissipation performance, beautiful appearance and durability, and its service life can be synchronized with the upper installation;

The hydraulic pipe joint adopts imported card sleeve type rigid connector (Germany), which greatly reduces the phenomenon of oil leakage and oil seepage at the interface, and the service life can also be synchronized with the installation.

Reversing valve

Imported multi-way directional control valve (Italy) is adopted and the installation method is optimized to ensure the safe operation of the multi-way directional control valve under various extreme conditions of use;

Oil cylinder

The inner walls of the cylinder are all boring and rolling processes, the inner walls of the cylinder are harder, wear-resistant and smoother, and the seals are fully protected;

The piston rods (solid) are all heat-treated, with high hardness and thick chrome plating, which can easily cope with high-intensity operations;

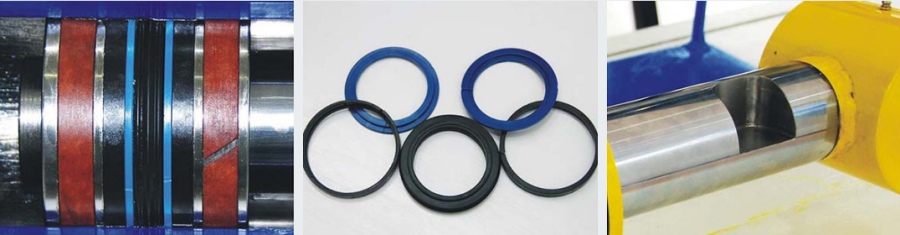

Fully use imported sealing components (Germany, the United Kingdom and Italy's special seal series), and adjust each sealing combination according to different cylinder structures in order to achieve the most perfect state of the cylinder;

The piston support ring adopts imported materials with high temperature resistance and wear resistance, and the design requires the use of a double support ring or a large-area single support ring structure.During wrecking operations, such as when the cylinder is subjected to a large lateral force, the high-standard support ring can ensure the stable operation of the cylinder and avoid damage caused by direct friction between the piston and the cylinder wall, the piston rod and the cylinder head;

The high-precision imported CNC machining center is used to process the cylinder piston and cylinder head to obtain a high standard of sealing.
