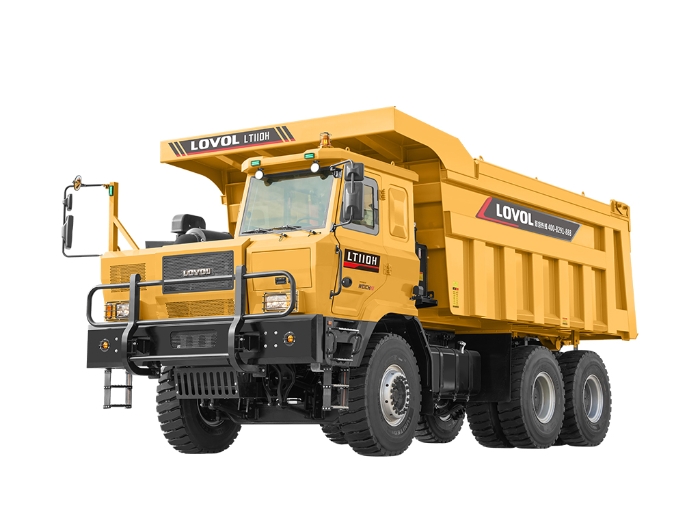

Lovol LT110H 6X4 105tons Heavy-Duty Mining Rigid Dump Truck

Truck Model

LT110H, Left Hand Drive or Right Hand Drive model

Truck Brand

SINOTRUK -HOWO

Dimension(Lx W xH)

8545x2496x3386

Cargo body size (L*W*H, mm)

5800x2300x1400

Cargo body thickness(mm)

bottom:8mm, side:6mm, or customized as you required

Lift type of Carriage

Ventral lifting or front tipping

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3625+1350

Max speed(km/h)

75

Curb weight(kg)

12290

Loading Weight(kg)

25000

Fuel Tanker

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ430mm

Engine

Model

WD615.47,4- stroke direct injection diesel

engine, 6 cylinders in line with water cooling ,

Horse Power,

371HP

Emission Standard

EURO II

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098/ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tire

12.00R20, 12.00-20

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah
